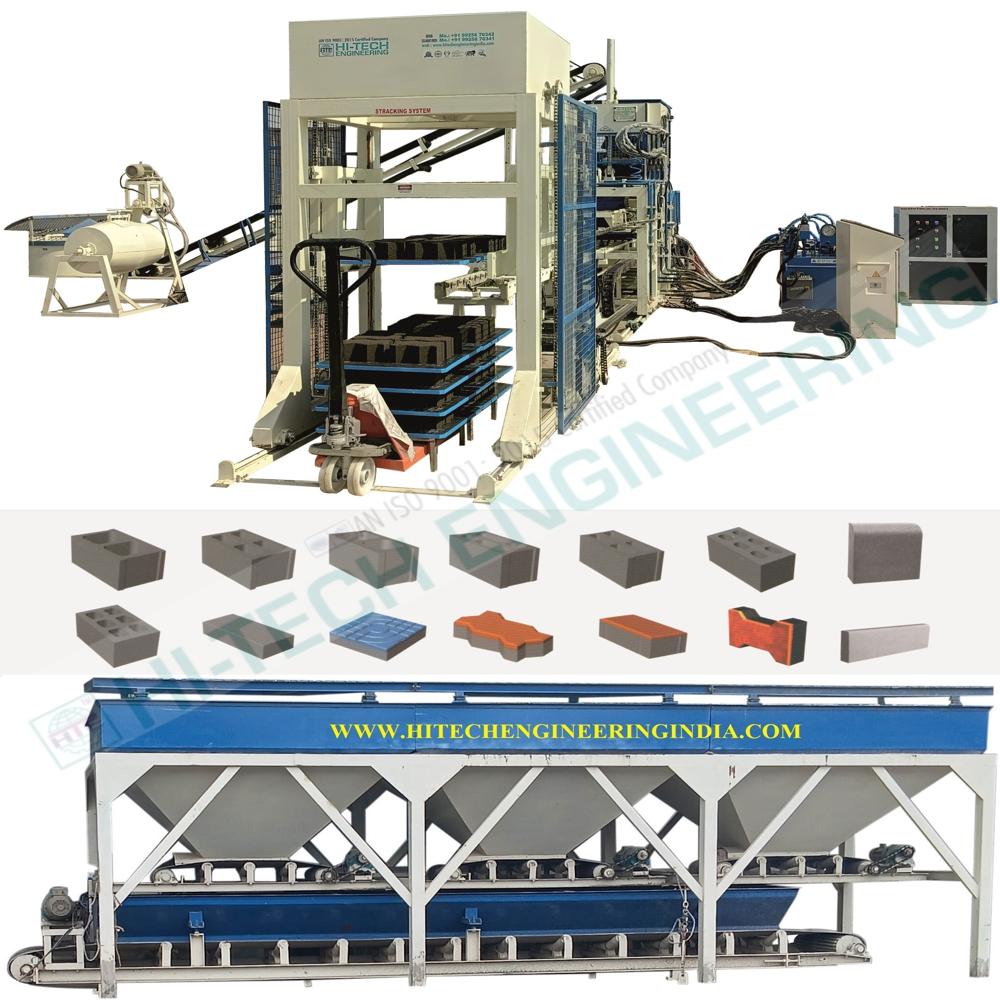

Vibro Press Paver Block Machine

Name: Vibro Press Paver Block Machine
Brand: HI TECH ENGINEERING
Price: 2238400.0 INR
Availability: InStock

Price 2238400.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Vibro Press Paver Block Machine Specification

Product Type
Color Paver, Brick, Concrete Solid Hollow Block Making Machine

General Use
Block Making Machine

Material
Concrete

Capacity
700 Pcs/hr

Weight (kg)
5 Kilograms (kg)

Type
Hollow Block Making Machine

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Method
Other

Vibration Type
Mold Vibration

Vibration Frequency
50 Hertz (HZ)

Maximum Pressure
1500 PSI

Machine Power
41.5 Horsepower (HP)

Voltage
440 Watt (w)

Dimension (L*W*H)
225x112.5x80 Millimeter (mm)

Pallet Size
24Inch x 24Inch x 18mm

Minimum Height
150 Millimeter (mm)

Maximum Height
12 Foot (ft)

Number of Bricks
8

Feature
Low Weight, Fire Resistant

Color
Yes

Warranty
12 Months

Vibro Press Paver Block Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
2 Units Per Month

Delivery Time
2

Sample Available
No

Packaging Details
Loose

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India

Certifications
AN ISO 9001:2015 CERTIFIED COMPANY

About Vibro Press Paver Block Machine

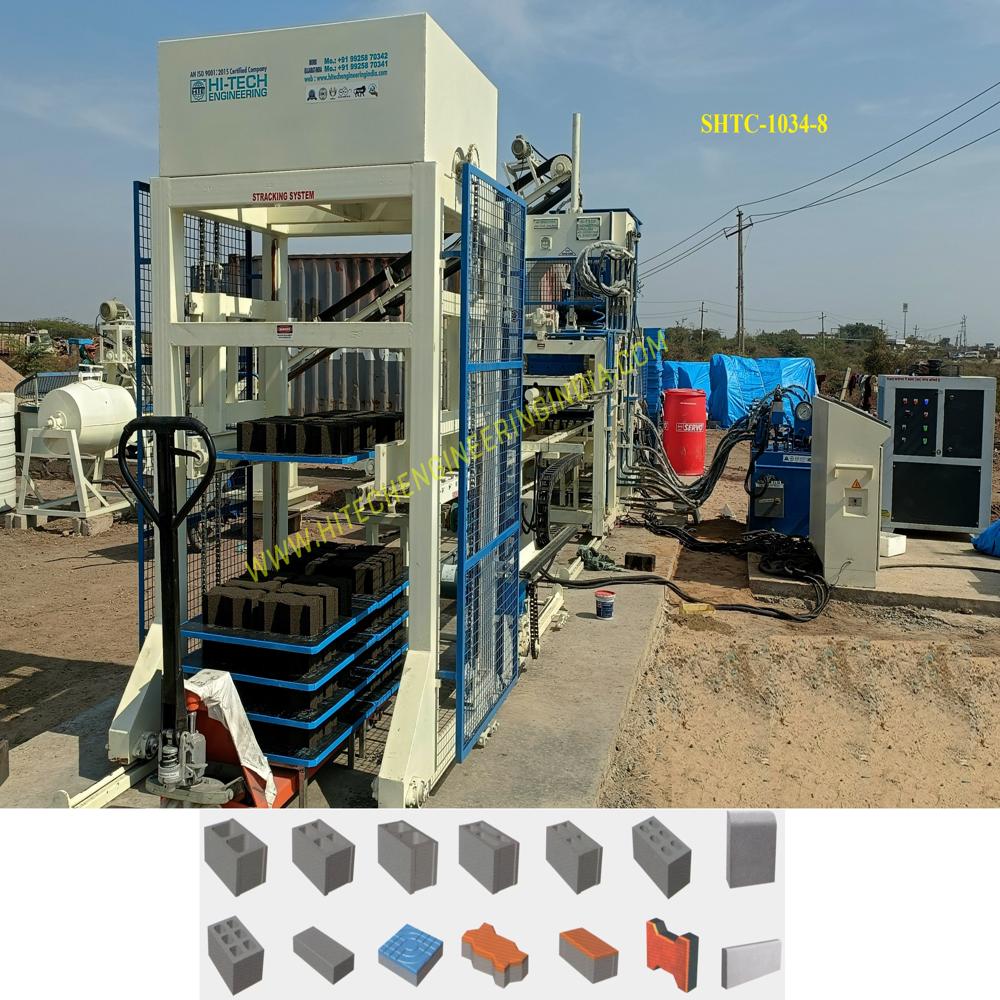

Model No. HTC-1034-8

1. Total Power Require: 41.5 HP, 31.13 KW, 3 Phases.

2. Oil Tank Capacity: 400 Liter, Standard Company, Grade 68 No. Hydraulic Oil.

3. Production Capacity per Shift 8 Hour: Color Paver- 5500 to 5700, Solid & Hollow Block- 2500 to 2600, Bricks- 11000 to 11500.

4. Paver Block per Stock: 6 Block or depend on design (Design as per requirement).

5. Solid & Hollow Block per Stock: 2 or 3 Block depend on size (Size As per requirement).

6. Bricks per Stock: 8 Bricks 230 X 110 X 75mm or as per requirement.

7. Hi-Tech Vibro System: 10HP Mould & 2 Nos. 0.5HP Tamper Head

8. Pallet Forward System: 1 HP.

9. System Vibro, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc

10. Auto Color Feeding: Auto Double Feeder Attachment for Top Layer, Color Paver.

11. Pan Mixer: 6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit.

12. Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm (Dunlop or MRF Belt).

13. Color Mixer (Drum Type): Color Mixing for Top Layer of Paver Blocks.

14. Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

15. Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

16. Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

17. Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.

Advanced Technology and Automation

Equipped with PLC control and fully automatic functionality, the Vibro Press Paver Block Machine simplifies block production with minimal manual input. Computerized systems ensure high precision and consistent quality, making the process both efficient and user-friendly.

Exceptional Output and Versatility

With a production capacity of up to 5,500 pieces per hour and support for paver, concrete, and fly ash bricks, this machine adapts to a variety of construction needs. Its ability to produce both hollow and solid blocks enhances its utility for different projects.

Robust Build and Reliable Operation

Constructed with high-quality materials and designed to withstand the rigors of industrial block making, the machine offers features such as fire resistance, low operational weight, and strong hydraulic pressure up to 1,500 PSI. These ensure reliable performance and long-term durability.

FAQ's of Vibro Press Paver Block Machine:

Q: How does the Vibro Press Paver Block Machine produce such high output?

A: The machine integrates hydraulic pressure with mold vibration and automated PLC control, enabling it to manufacture up to 5,500 bricks or blocks per hour. Its 42-horsepower system ensures efficient operation while maintaining consistent quality across each cycle.

Q: What are the primary materials and block types supported by this machine?

A: The Vibro Press accommodates concrete and fly ash as raw materials, and can manufacture a wide range of products including paver blocks, hollow blocks, solid bricks, and concrete bricks, making it suitable for various construction demands.

Q: When is it recommended to use this block making machine?

A: This machine is ideal for high-volume production environments-such as commercial or industrial construction projects-where efficient, reliable, and automated block manufacturing is required to meet tight deadlines and quality standards.

Q: Where is this machine typically installed and operated?

A: Due to its size and power requirements (operating at 440V and needing significant space), it is best suited for block production plants, construction material suppliers, or dedicated manufacturing units in India and similar markets.

Q: What is the operational process of making bricks with this machine?

A: Raw materials such as concrete or fly ash are loaded into the hopper, after which the machine uses hydraulic pressure and mold vibration to compact the mixture, form blocks or bricks, and eject finished products automatically onto pallets, all guided by computerized PLC controls.

Q: What are the benefits of using the Vibro Press Paver Block Machine?

A: Key benefits include high production capacity, consistent quality, adaptability to various block types, fire-resistant output, reduced manpower needs through automation, and dependable performance due to robust materials and advanced control systems.
