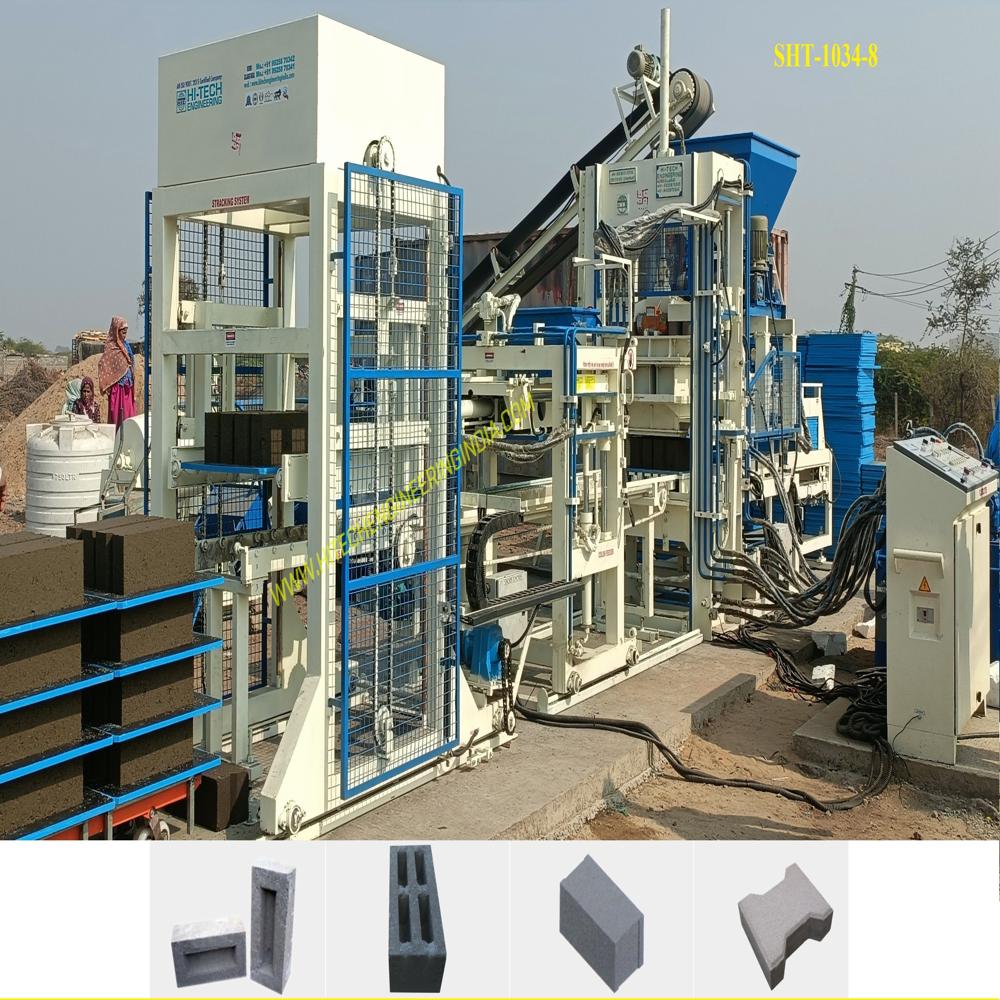

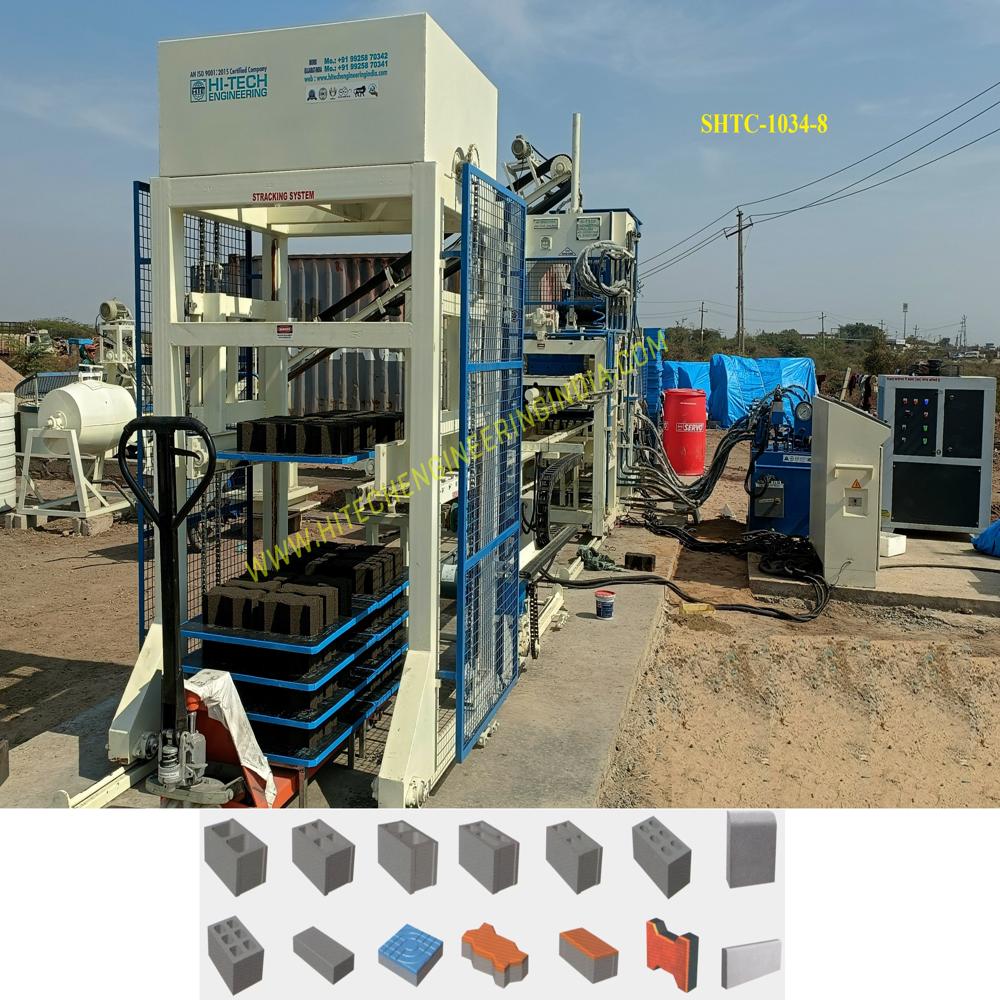

Hollow Block Making Machine

About Hollow Block Making Machine

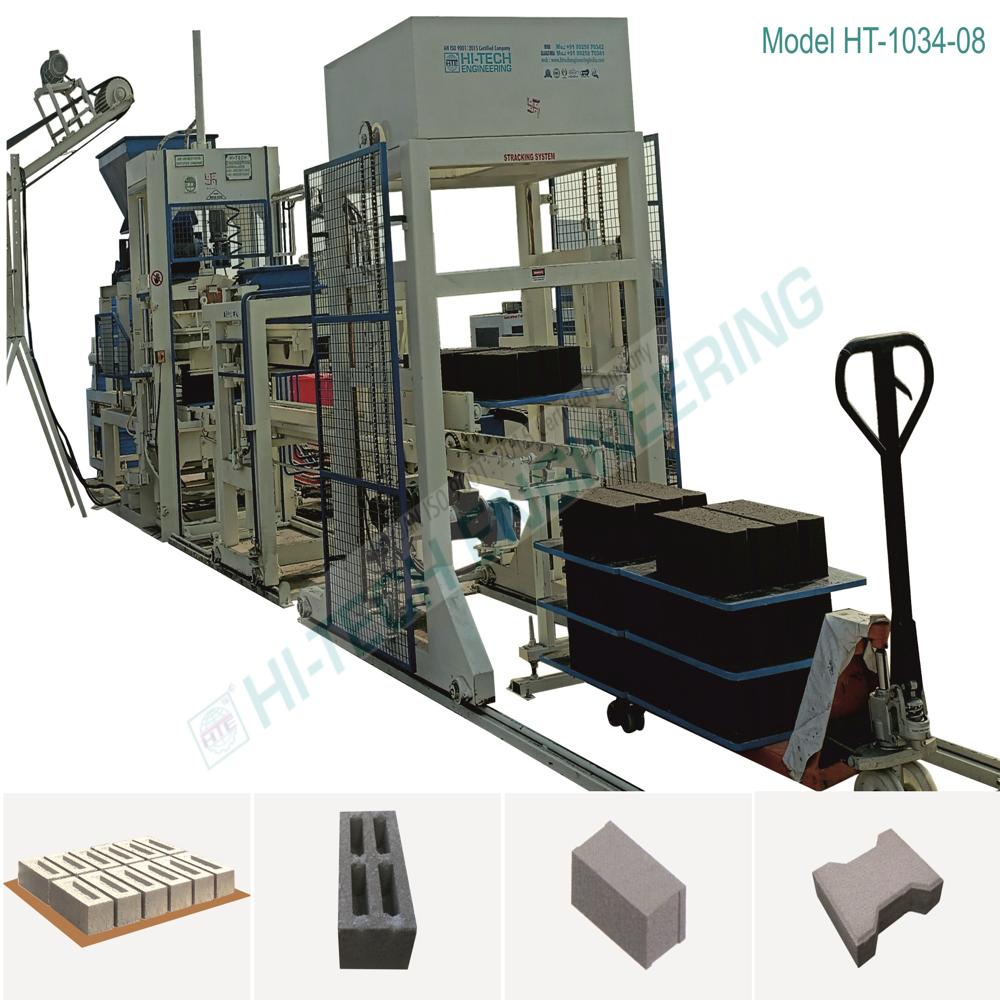

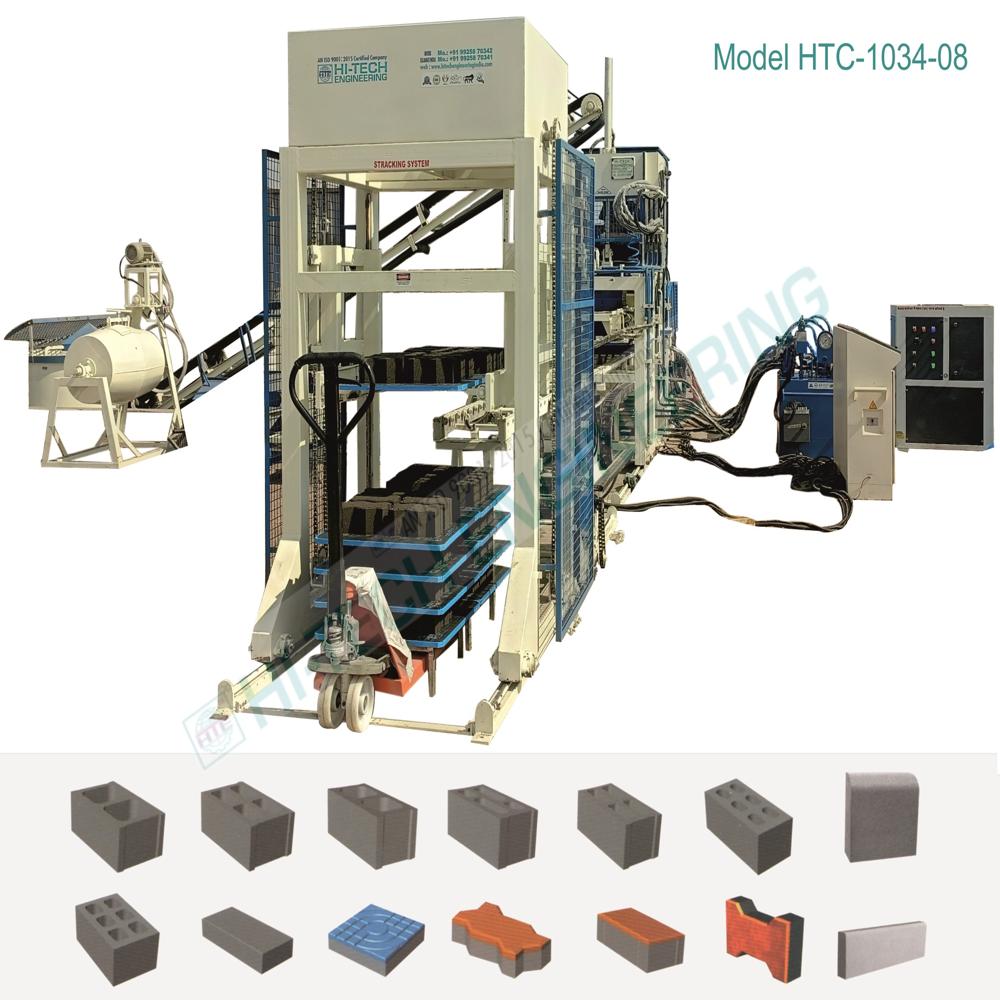

Model No. HT-1034-8

1.        Total Power Require: 39.5 HP, 29.63 KW, 3 Phases.

2.        Oil Tank Capacity: 400 Liter, Standard Company, Grade 68 No. Hydraulic Oil.

3.        Production Capacity per Shift 8 Hour: Bricks- 11000 to 11500, Solid or Hollow Block- 2500 to 2600, Plain Paver- 8300 to 8600.

4.        Bricks per Stock: 8 Bricks 230 X 110 X 75mm or as per requirement.

5.        Plain Paver Block per Stock: 6 Block or depend on design (Design as per requirement).

6.        Solid & Hollow Block per Stock: 2 or 3 Block or depend on size (Size As per requirement).

7.        Hi-Tech Vibro System: 10HP  Mould & 2 Nos. 0.5HP Tamper Head

8.        Varam System: 1 HP.

9.        Pallet Forwarding System: 1 HP

10.     System Vibro, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc

11.     Pan Mixer: 6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade) Powerful Worm Reduction Gear Box Transmission Unit.

12.     Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm (Dunlop or MRF Belt)

13.     Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

14.     Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

15.     Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

16.     Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.
