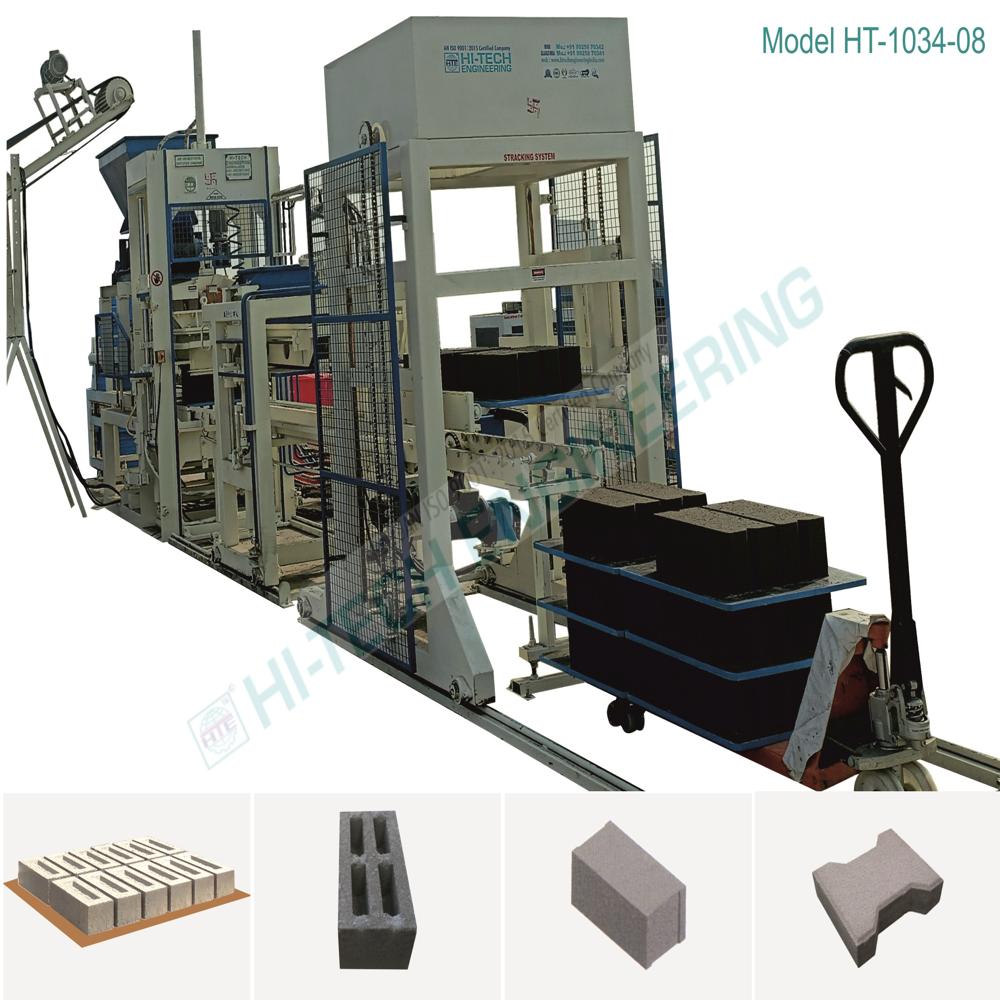

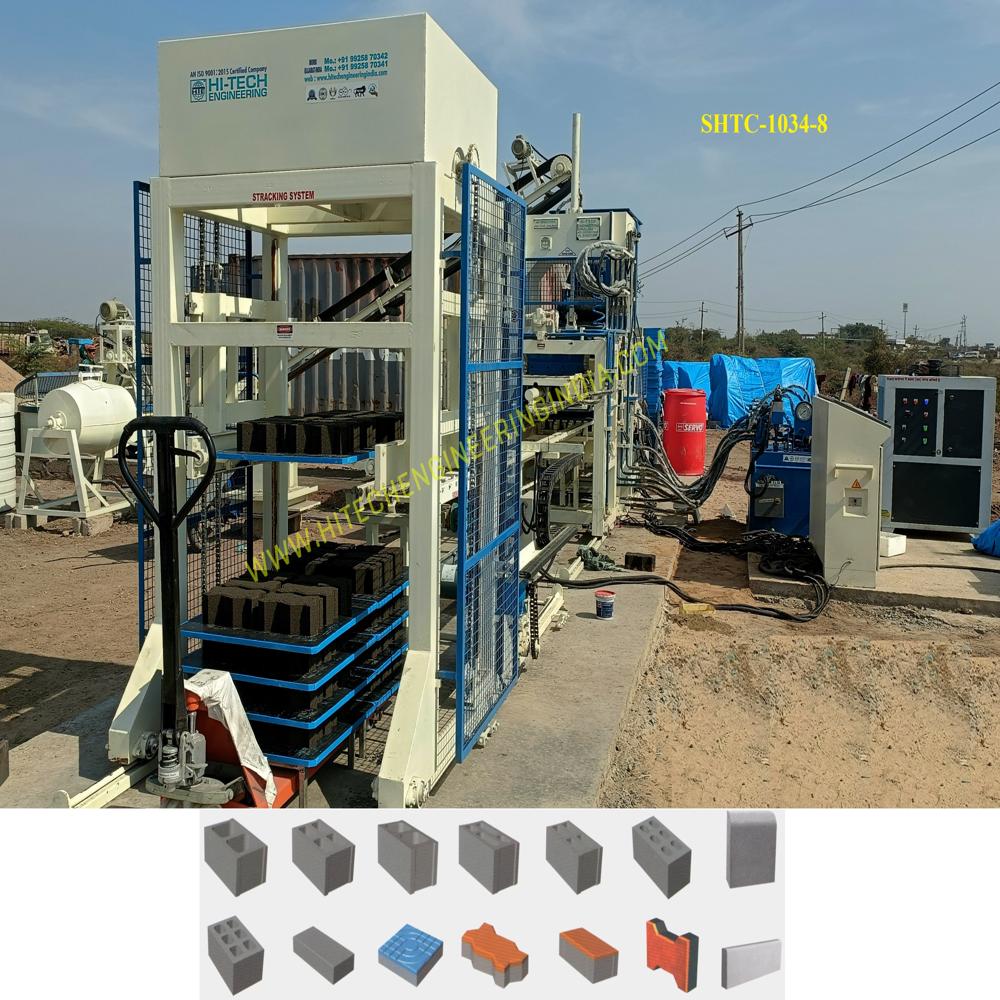

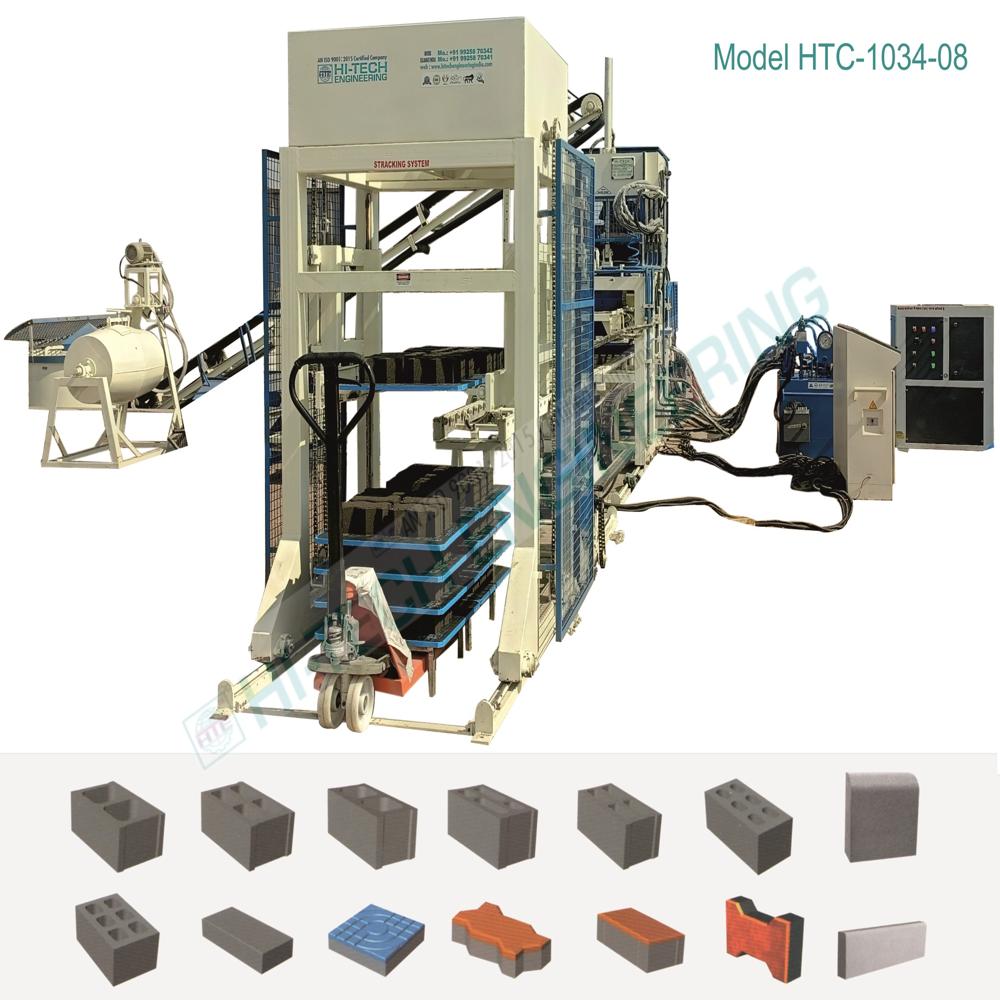

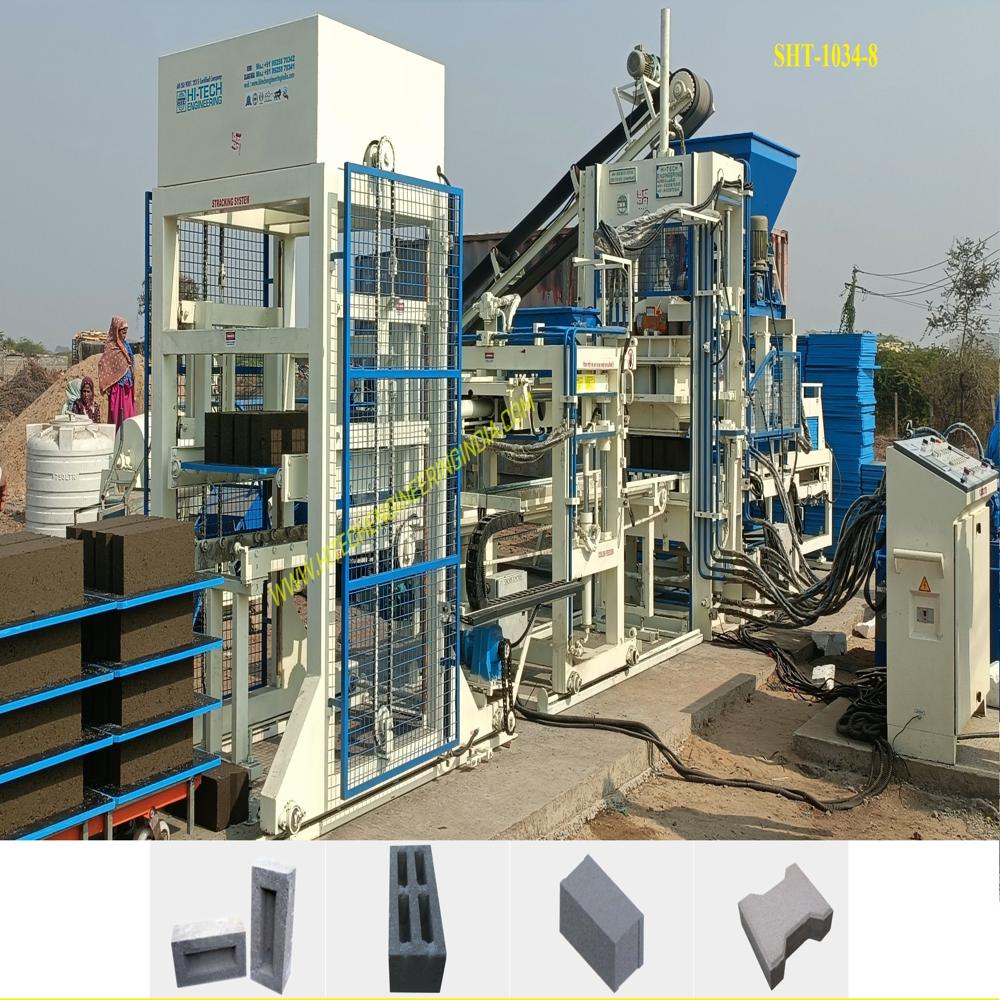

Vibro Press Brick Machine

About Vibro Press Brick Machine

Model No. HTC-1034-8

1.        Total Power Require: 41.5 HP, 31.13 KW, 3 Phases.

2.        Oil Tank Capacity: 400 Liter, Standard Company, Grade 68 No. Hydraulic Oil.

3.        Production Capacity per Shift 8 Hour: Color Paver- 5500 to 5700, Solid & Hollow Block- 2500 to 2600, Bricks- 11000 to 11500.

4.        Paver Block per Stock: 6 Block or depend on design (Design as per requirement).

5.        Solid & Hollow Block per Stock: 2 or 3 Block depend on size (Size As per requirement).

6.        Bricks per Stock: 8 Bricks 230 X 110 X 75mm or as per requirement.

7.        Hi-Tech Vibro System: 10HP  Mould & 2 Nos. 0.5HP Tamper Head

8.        Pallet Forward System: 1 HP.

9.        System Vibro, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc

10.     Auto Color Feeding: Auto Double Feeder Attachment for Top Layer, Color Paver.

11.     Pan Mixer: 6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit.

12.     Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm (Dunlop or MRF Belt).

13.     Color Mixer (Drum Type): Color Mixing for Top Layer of Paver Blocks.

14.     Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

15.     Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

16.     Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

17.     Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.
