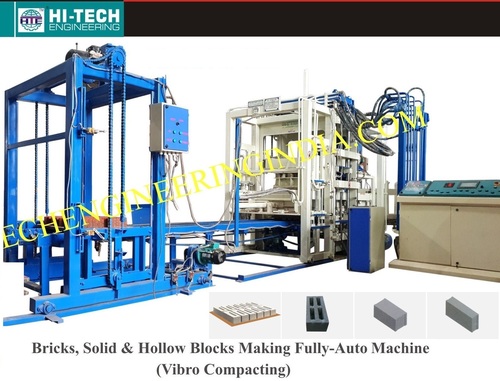

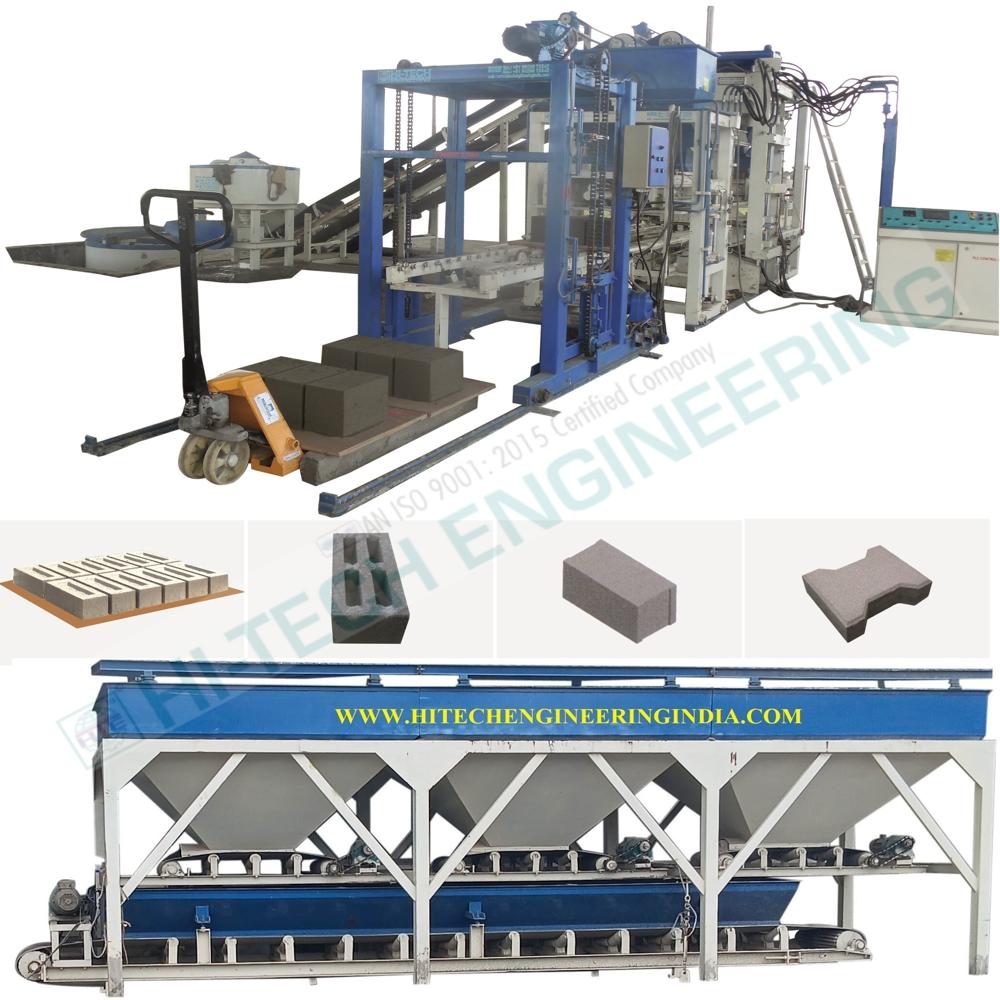

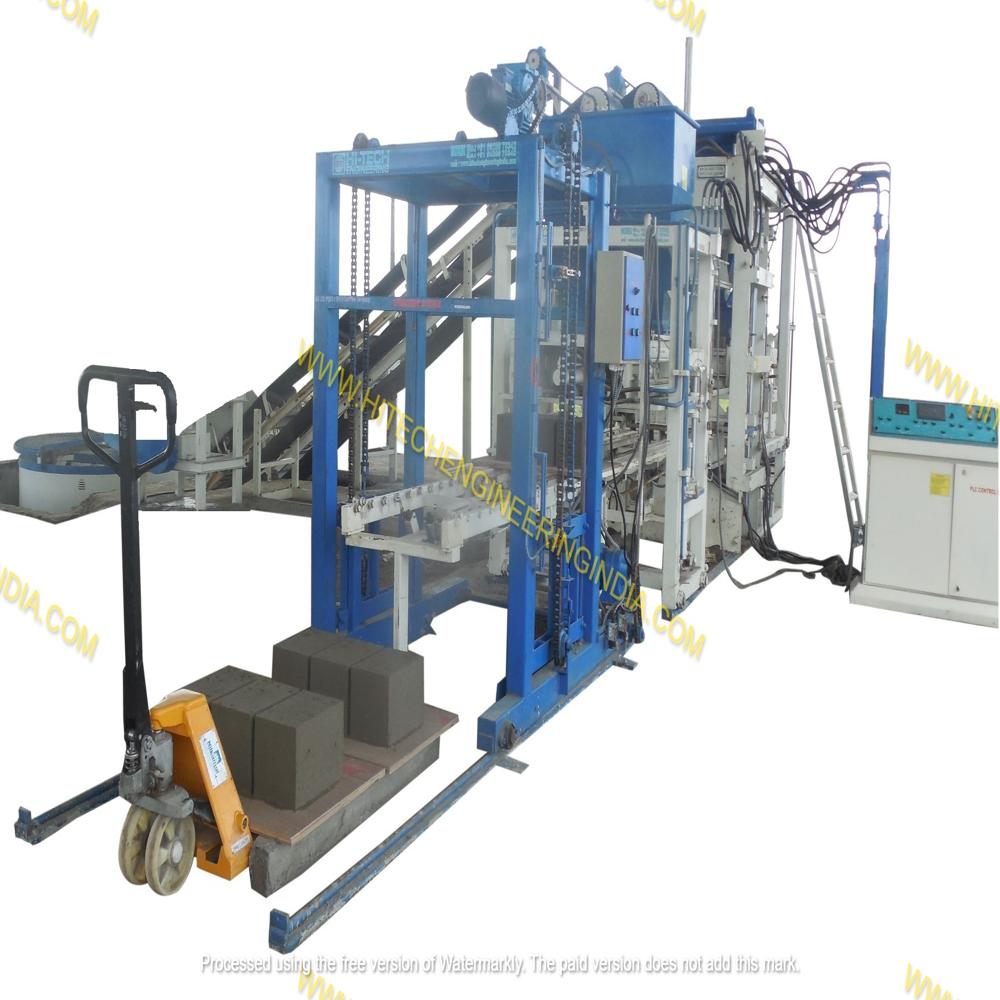

Vibro Press Concrete Block Making Machine

About Vibro Press Concrete Block Making Machine

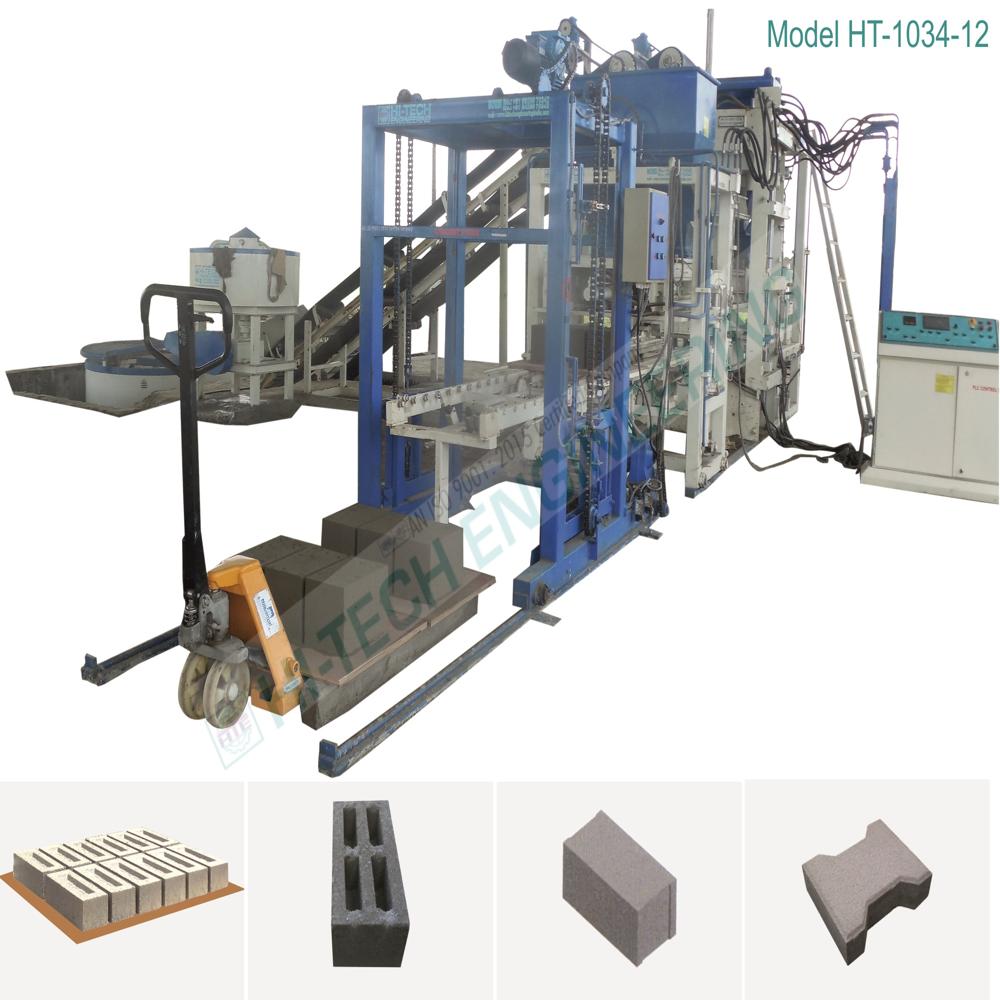

Model No. HT-1034-12

1.        Total Power Require: 58 HP, 43.5 KW, 3 Phases.

2.        Oil Tank Capacity: 475 Liter, Standard Company, Grade 68 No. Hydraulic Oil.

3.        Production Capacity per Shift 8 Hour: Bricks- 17000 to 17300, Solid or Hollow Block- 4500 to 4800, Plain Paver- 14000 to 14400.

4.        Bricks per Stock: 12 Bricks 230 X 110 X 75mm or as per requirement.

5.        Plain Paver Block per Stock: 10 Block or depend on design (Design as per requirement).

6.        Solid & Hollow Block per Stock: 3 or 4 Block or depend on size (Size As per requirement).

7.        Mould Vibro System: 15HP  Mould & 2 Nos. 2HP Tamper Head

8.        Pallet Forwarding System: 1 HP

9.        System Vibro, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc

10.     Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade) Powerful Worm Reduction Gear Box Transmission Unit.

11.     Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm (Dunlop or MRF Belt)

12.     Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

13.     Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

14.     Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

15.     Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.
