Automatic Fly Ash Brick Making Machine

The durability, robustness and excellent engineering property Automatic Fly Ash Brick Making Machines widen the scope for their application in development of infrastructure as well as building construction. The machines are also suited for the construction of dams, pavements, canal lining, under water works, and irrigation work etc. Supplied automated machines have a great capacity to provide augmented output in every single hour. Automatic fly ash brick making machines are known well for their functional efficacy, safe operation, and innovative brick production techniques. The machines produce brick for factories, building, power plants, high-rise structures etc.

(Model HT-1029)

Automatic Fly Ash Brick Machine

Price: 4182200 INR/Unit

1. High Press Tonnage: 300 MT + Top Vibro Pressure, German Technology. 2. Total Power Require: 78 HP, 58.5 KW, 3 Phases. 3. Oil Tank Capacity: 650 Liters, Standard Company Grade 68 No. Hydraulic Oil. 4. Production Capacity per Shift 8 Hour: Bricks 28000 to 30000. 5. Bricks per Stock: 18 Bricks, 230 X 110 X 75mm or Size as per requirement. 6. System: Vibro with pressure, Oil Cooling, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc 7. Pan Mixer: 2 Nos. (7 Ft 1200 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit. 8. Conveyor: Ft 30 X Width 24 Inch X Thickness 8mm (Dunlop or MRF Belt). 9. Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System. 10. Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display. 11. Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.

Send Inquiry

Request To Call Back

(Model HT-1012)

Automatic Fly Ash Brick And Solid Block Making Machine

Price: 3232200.00 INR/Unit

1. High Pressure Tonnage: 200 MT + Top Vibro Pressure (German Technology). 2. Total Power Require: 56 HP, 42KW, 3 Phases. 3. Oil Tank Capacity: 600 Liter, Grade 68 No. Hydraulic Oil. 4. Production Capacity per Shift 8 Hour: Solid Block 5500 to 6000 & Bricks 22000 to 23000. 5. Bricks per Stock: 12 Bricks, 230 X 110 X 75mm or Size as per requirement. 6. Solid Block per Stock: 3 or 4 Block, 400 X 200 X 150mm or Size as per requirement. 7. System: Vibration with pressure, Oil Cooling, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc... 8. Pan Mixer: 2 Nos. (7 Ft. 900 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit. 9. Conveyor: Ft 30 X Width 24 Inch X Thickness 8mm, Dunlop/MRF Belt. 10. Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If Require). 11. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display. 12. Note: Specifications are subject to change for improvement.

Send Inquiry

Request To Call Back

(Model HT-1033)

70 MT Automatic Fly Ash Brick Making Machine

Price: 792000 INR/Unit

High Pressure Tonnage: 70 MT Total Power Require: 13 HP, 3 Phases. Oil Tank Capacity: 225 Liter, Grade 68 No. Hydraulic Oil Production Capacity in Shift (100% 8 Hour): Bricks 5000 to 5500. Bricks per Stock: 3 Bricks, 230 X 110 X 75mm or as per requirement. System: Hydraulic Stand for removing Bricks / Auto Stop Control Panel, Oil Filter, etc Pan Mixer: 1 Nos. / 5 Ft. 400 Kg Capacity, Heavy Duty (Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit. Note: Specifications are subject to change for improvement.

Send Inquiry

Request To Call Back

(Model HT-1025)

150 MT Fly Ash Bricks Making Fully Auto Machine

Price: 2368800.00 INR/Unit

1. High Pressure Tonnage: 150 MT + Top Vibro Pressure, German Technology. 2. Total Power Require: 42 HP, 31.5 KW, 3 Phases. 3. Oil Tank Capacity: 550 Liter, Grade 68 No. Hydraulic Oil, 4. Production Capacity per Shift 8 Hour: Bricks 19000 to 20000. 5. Bricks per Stock: 10 Bricks, 230 X 110 X 75mm or as per requirement. 6. System: Vibration with pressure, Oil Cooling, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc... 7. Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit. 8. Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop or MRF Belt. 9. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display. 10. Note: Specifications are subject to change for improvement.

Send Inquiry

Request To Call Back

(Model HT-1015)

80 MT Fly Ash Brick Making Auto Machine

Price: 1654800.00 INR/Unit

1. High Press Tonnage: 80 MT + Top Vibro Pressure, German Technology. 2. Total Power Require: 21.5 HP, 16.13KW, 3 Phases. 3. Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil. 4. Production Capacity per Shift 8 Hour: Bricks 12000 to 13000. 5. Bricks per Stock: 5 Bricks, 230 X 110 X 75mm or as per requirement. 6. System: Oil Cooling, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc... 7. Pan Mixer: 6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit. 8. Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt. 9. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display. 10. Note: Specifications are subject to change for improvement.

Send Inquiry

Request To Call Back

(Model HT-1030)

125 MT Fly Ash Bricks Making Fully Auto Machine

Price: 2087800.00 INR/Unit

1. High Pressure Tonnage: 125 MT + Top Vibro Pressure, German Technology. 2. Total Power Require: 32 HP, 24 KW, 3 Phases. 3. Oil Tank Capacity: 500 Liters, Grade 68 No. Hydraulic Oil 4. Production Capacity per Shift 8 Hour: Bricks 15000 to 16000. 5. Bricks per Stock: 8 Bricks, 230 X 110 X 75mm or Size as per requirement. 6. System: Vibration with pressure, Oil Cooling, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc... 7. Pan Mixer: 2 Nos. (5 Ft. 400 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit. 8. Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt. 9. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display. 10. Note: Specifications are subject to change for improvement.

Send Inquiry

Request To Call Back

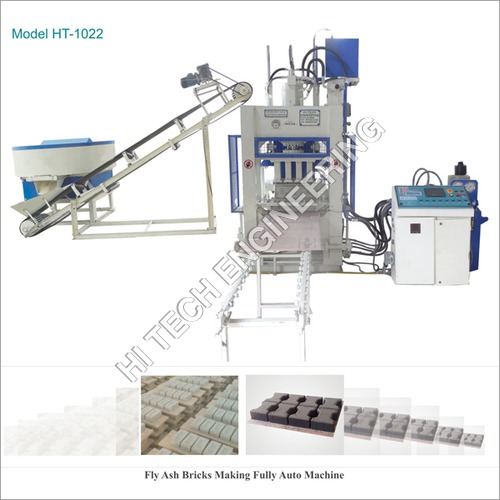

(Model HT-1022)

80 MT Fly Ash Brick Making Fully Auto Machine

Price: 1312000.00 INR/Unit

1. High Pressure Tonnage: 80 MT + Top Vibro Pressure, German Technology. 2. Total Power Require: 17 HP, 12.75KW, 3 Phases. 3. Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil, 4. Production Capacity per Shift 8 Hour: Bricks 7000 to 7500. 5. Bricks per Stock: 4 Bricks, 230 X 110 X 75mm or as per requirement. 6. System: Vibration with pressure, Oil Cooling, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc... 7. Pan Mixer: 5 Ft. 400 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit. 8. Conveyor: Ft 18 X Width 18 Inch X Thickness 8mm, Dunlop or MRF Belt. 9. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display. 10. Note: Specifications are subject to change for improvement.

Send Inquiry

Request To Call Back

(Model HT-1032)

100 MT Fly Ash Bricks Making Fully Auto Machine

Price: 1625100.00 INR/Unit

1. High Pressure Tonnage: 100 MT + Top Vibro Pressure, German Technology. 2. Total Power Require: 23.5 HP, 17.63 KW., 3 Phases. 3. Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil, 4. Production Capacity per Shift 8 Hour: Bricks 10500 to 11000. 5. Bricks per Stock: 6 Bricks, 230 X 110 X 75mm or as per requirement. 6. System: Vibration with pressure, Oil Cooling, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc... 7. Pan Mixer: 6 Ft 600 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit. 8. Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop or MRF Belt. 9. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display. 10. Note: Specifications are subject to change for improvement.
