Weigh batching system

Name: Weigh batching system
Brand: HI TECH ENGINEERING
Price: 1522000.0 INR
Availability: InStock

Price 1522000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Weigh batching system Specification

Surface
Plain

Motor Power
16 Horsepower (HP)

Lifting Speed
1440 RPM

Product Type
concrete weigh batcher

General Use
Material Weight System

Material
Steel

Type
Mini Loader

Capacity
3 Ton

Weight (kg)
3 Metric Ton

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Cooling System
Other

Method
Other

Voltage
440 Volt (v)

Dimension (L*W*H)
23x7x8 Foot (ft)

Color
White

Warranty
1 Year

Weigh batching system Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
1 Unit Per Month

Delivery Time
35 Days

Sample Available
No

Packaging Details
Loose

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India

Certifications
AN ISO 9001:2015 CERTIFIED COMPANY

About Weigh batching system

Weigh Batcher Plant Single Mixer

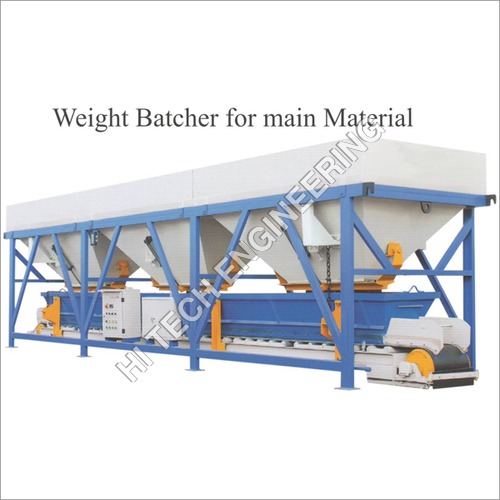

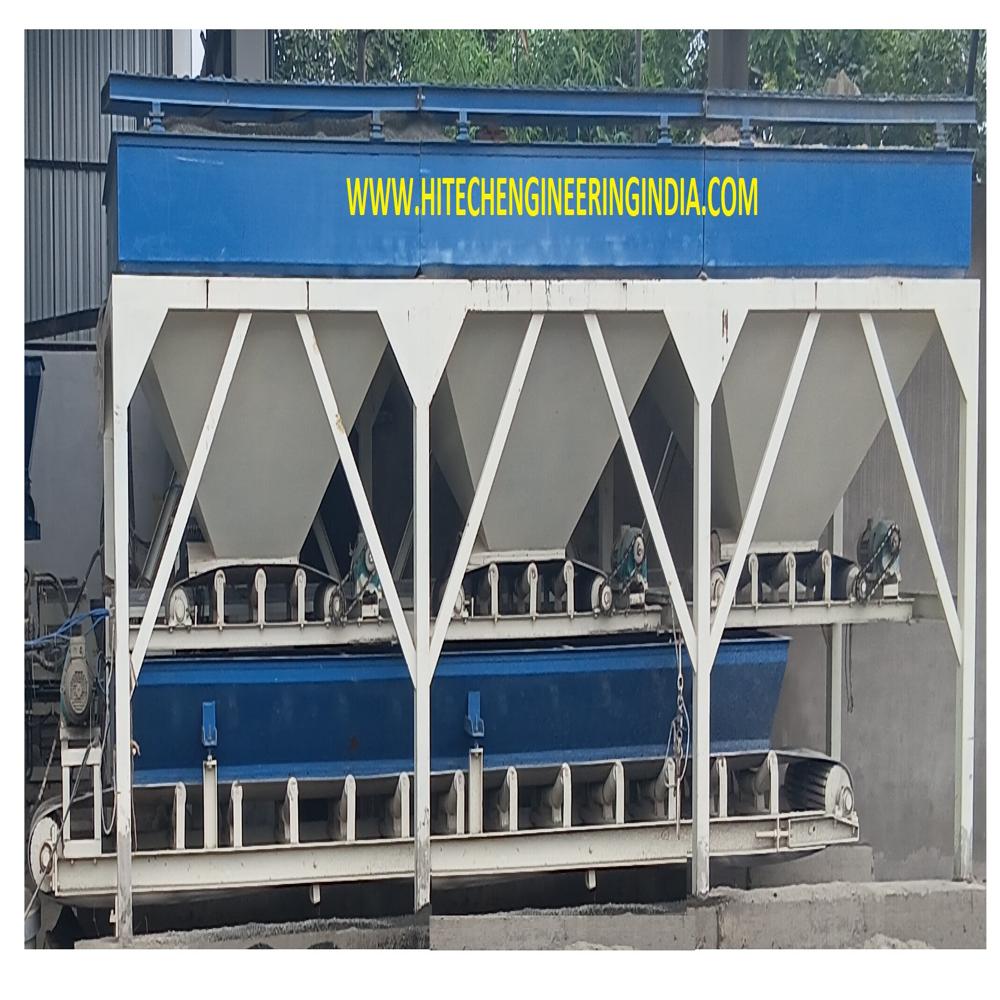

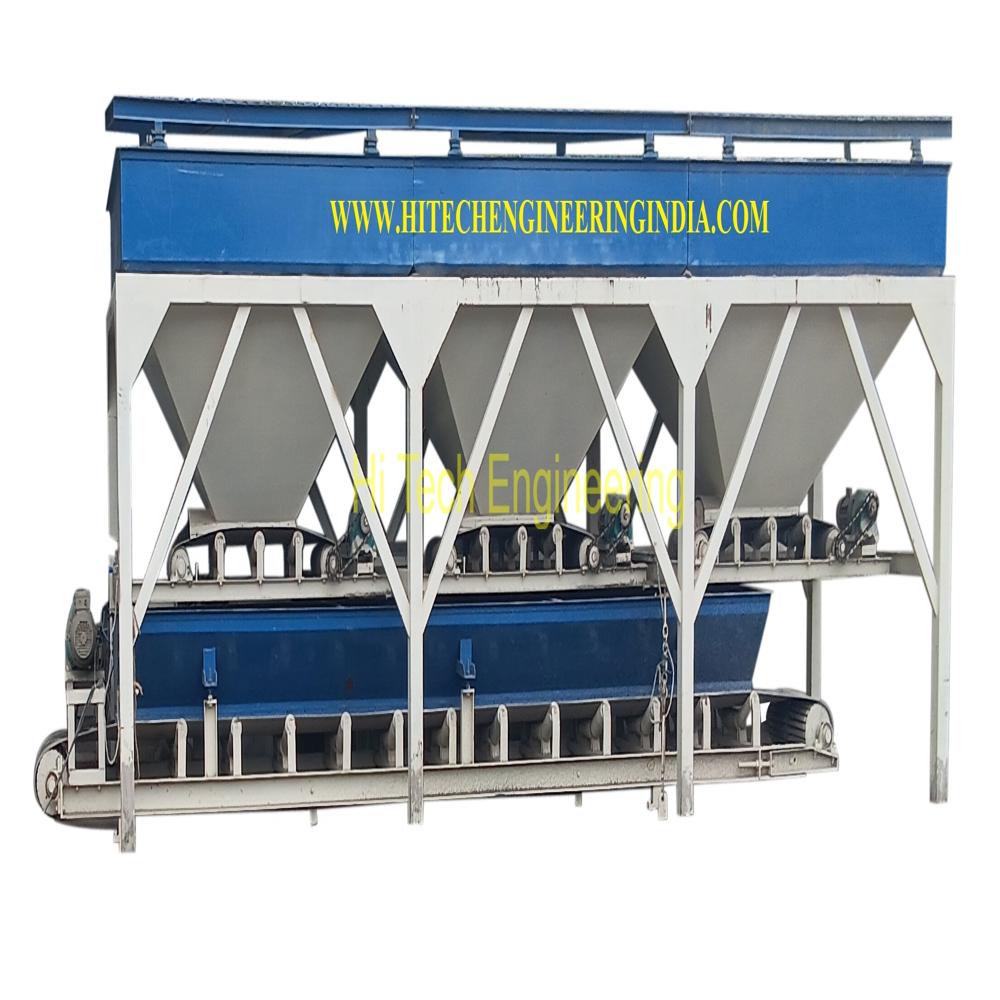

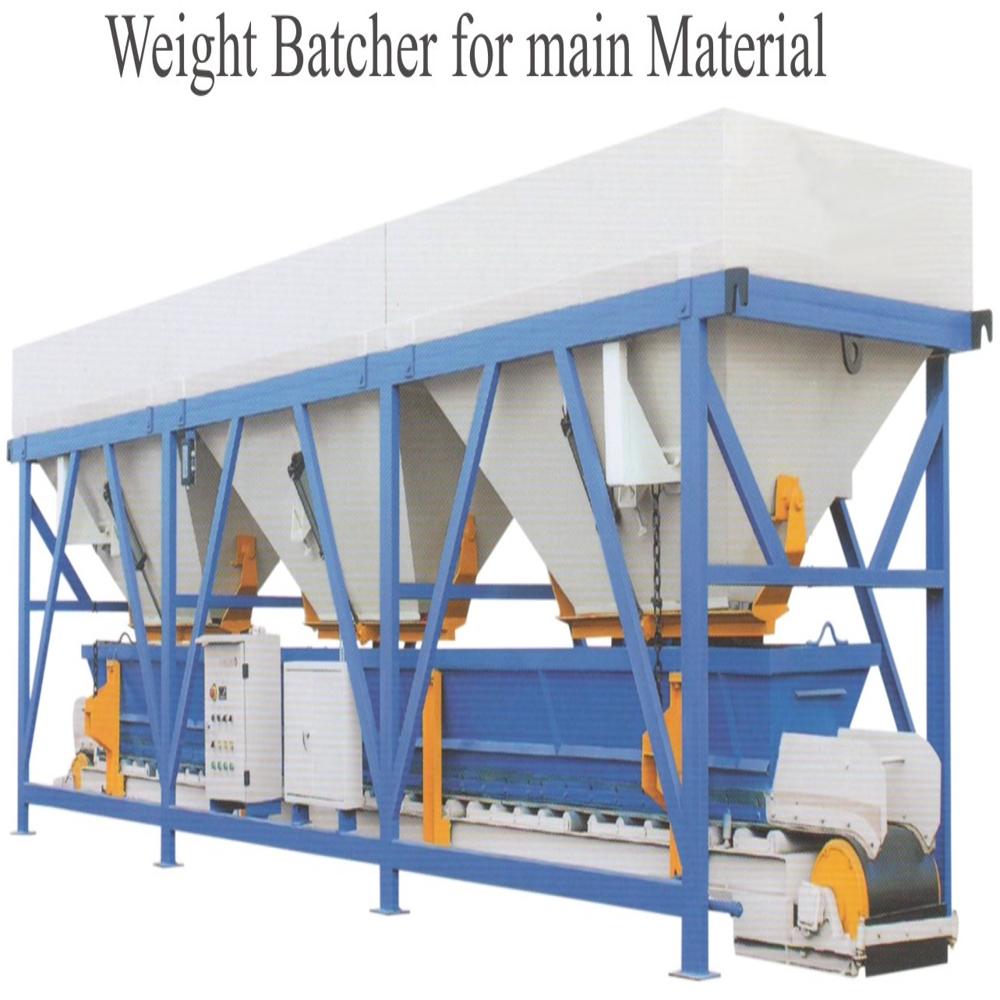

3 Bin Inline Auto Weigh Batcher Plant Approx 3.5 Cu.Mt Capacity of Each Bin:

Top Covered Vibrating Screen (Jali) 0.5HP, Capacity Each Bin 3.5 Cu.Mt (Size 7.5 L x 6 W x 4.5 H), Bin Batching Plant Made Of 4mm Thk. Ms Plate with Heavy Pipe & Channel Supports, All Bin Auto Feed Conveyor With 1HP 3Nos Motor, 650mm Wide Conveyor Belt For Receiving Material And Weighment, 5HP Motor and Gearbox, Conveyor Belt Supported On Load Cells. Hopper to Retain Material on Conveyor Belt. Vibrator Motor 0.25HP (3 Nos.) For Fly Ash Hopper Bin, Sand Hopper and Concrete Hopper Bin.

Panel Board:

Panel Board Suitable To Operate All Above System With All Electronics And Wiring. Digital Display Meters For Each Material, Powder Coated Body Made Of MS Steel, All Preventive Items And PLC Where Ever Necessary.

Cement Screw Conveyor, Hopper, Load Cell, Butter Fly Valve, Air Compressor 1Hp.

Cement Screw Conveyor 18Ft, 5HP Motor and Transmission Box with Assembly, Cap. 100 Kg. Per Five Minutes Made Of MS Pipe And MS Blades. Bottom Hopper, Cap. 400 Kg Load With 0.25HP Vibrator, Upper Hopper Load Cell 0.25HP Vibrator

Precision Weighing Technology

This system leverages advanced PLC controls and automated features to ensure precise material measurement during batching processes. The integrated computerization minimizes human error and enhances accuracy, making it ideal for industries requiring consistent ingredient ratios.

Enhanced Productivity and Efficiency

With a powerful 16 HP motor and rapid lifting speed of 1440 RPM, bulk materials are handled swiftly, optimizing operational workflows. The 3-ton capacity supports substantial batching operations, reducing downtime and manual labor while improving overall productivity.

Rugged Construction and Reliability

Manufactured from high-grade steel, the weigh batching system can withstand intensive use in demanding environments. Its sturdy build and plain surface design require minimal maintenance, ensuring longevity and dependable performance throughout its service life.

FAQ's of Weigh batching system:

Q: How does the computerized PLC control system improve batching accuracy?

A: The computerized PLC control system automates material weighing and batching processes, minimizing manual intervention. This ensures precise, repeatable results and reduces the possibility of operator error, resulting in consistently accurate batch weights.

Q: What materials can be processed with the mini loader weigh batching system?

A: This weighing system is suitable for handling a variety of bulk materials, including aggregates, powders, grains, and other construction or industrial materials commonly used in manufacturing and processing industries.

Q: When is this material weighing system most beneficial for industrial use?

A: It is particularly beneficial during high-volume or continuous batching operations where precision and efficiency are critical, such as in construction, ready-mix concrete plants, and material processing facilities.

Q: Where can the weigh batching system be installed for optimal use?

A: Given its compact dimensions, the system can be installed in industrial plants, production lines, or outdoor batching areas. Its size and robust design support flexible placement according to workflow needs.

Q: What is the process for operating the weigh batching system?

A: Operation begins by feeding materials into the loader. The system, managed by the PLC unit, automatically monitors, weighs, and batches the material before discharging it as per programmed specifications, ensuring efficiency and consistency with minimal manual input.

Q: How does the automatic feature contribute to productivity?

A: The automatic mode streamlines the entire batching process-loading, weighing, and batching are performed seamlessly. This reduces labor requirements, eliminates bottlenecks, and increases output while maintaining accuracy.

Q: What are the main benefits of using this system for material batching?

A: Key benefits include improved batch consistency, reduced labor costs, faster processing times, and enhanced operational safety. The combination of automation and sturdy construction makes it an advantageous investment for businesses targeting efficient and accurate material handling.
