Paver Block Making Machine

Price 1881800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Paver Block Making Machine Specification

Product Type
Paver Block Making Machine

General Use
Paver Block Making Machine

Material
Cement

Capacity
450 Pcs/hr

Weight (kg)
5 Kilograms (kg)

Type
Hollow Block Making Machine

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Method
Hydraulic Pressure

Vibration Type
Mold Vibration

Vibration Frequency
45 Hertz (HZ)

Maximum Pressure
3000 PSI

Machine Power
24 Horsepower (HP)

Voltage
440 Volt (v)

Dimension (L*W*H)
220x110x80mm Millimeter (mm)

Pallet Size
24 x15 x18mm

Minimum Height
80 Millimeter (mm)

Maximum Height
80 Millimeter (mm)

Number of Bricks
3

Feature
High Durability

Color
Red

Warranty
12 Months

Paver Block Making Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cheque

Supply Ability
1 Piece Per Month

Delivery Time
45 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
loose

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified Company

About Paver Block Making Machine

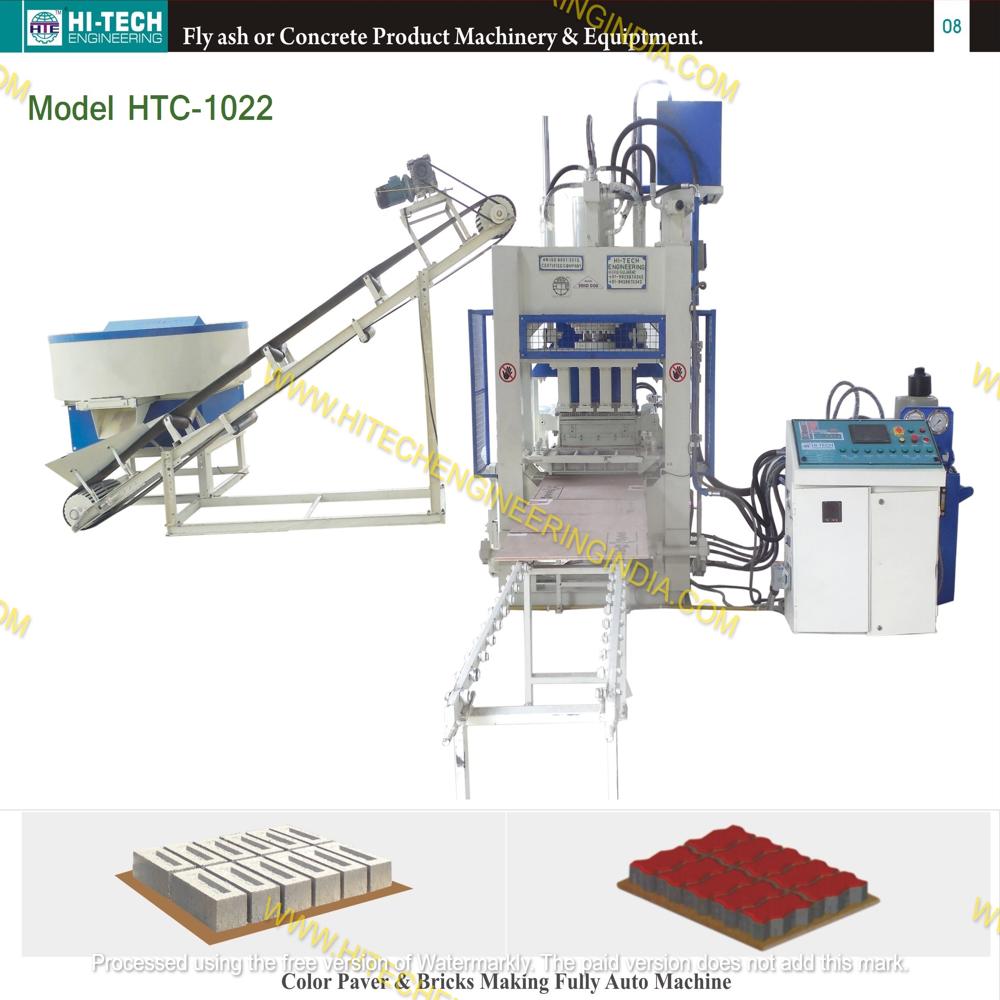

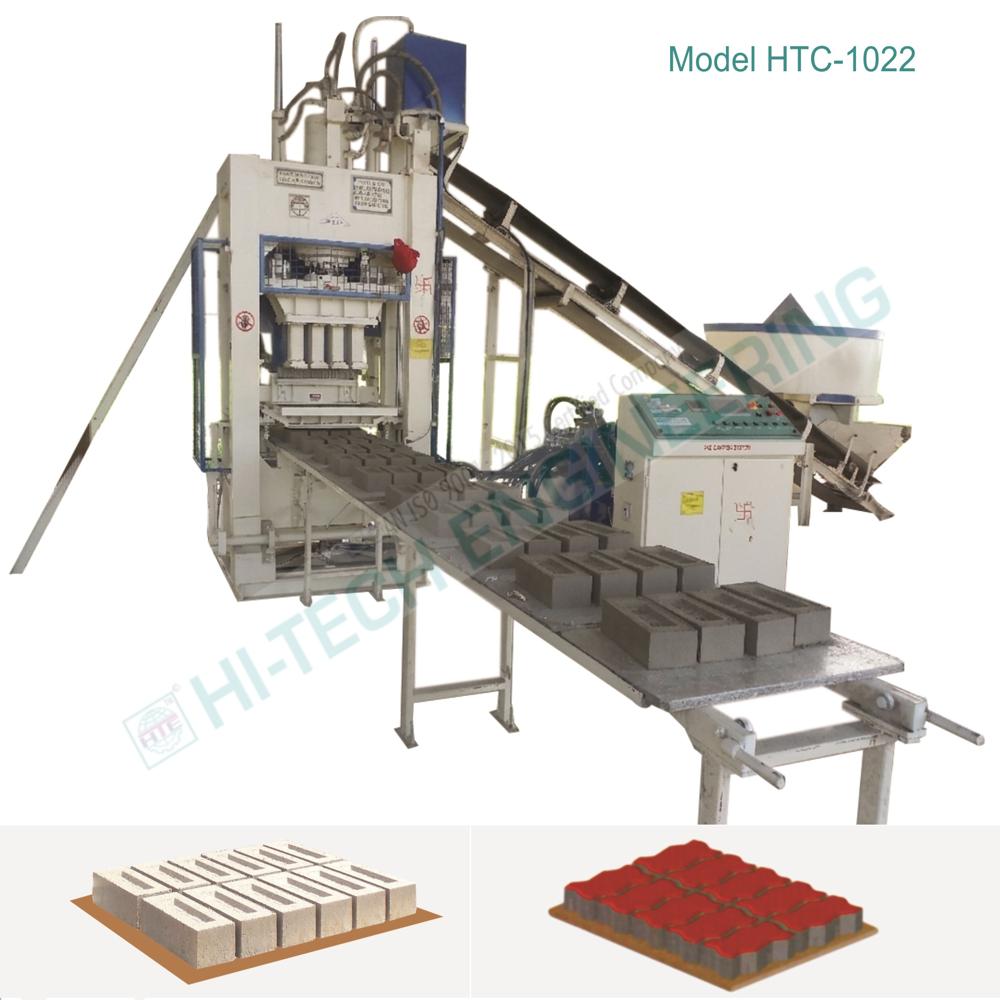

Model No. HTC-1022

1. High Pressure Tonnage: 80 MT + 2 HP Mould Vibro Pressure, German Technology.

2. Total Power Require: 24 HP, 18 KW, 14.63 KW, 3 Phases.

3. Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil,

4. Production per Shift 8 Hour: Color Paver 3500 to 3600 / Bricks 7000 to 7500.

5. Block per Stock: 3 Paver Block or depend on design / 4 Bricks, 230 X 110 X 75mm or as per requirement.

6. System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

7. Auto Color Feeding: Auto Double Feeder Attachment for Top Layer, Color Paver.

8. Pan Mixer: 5 Ft. 400 Kg Capacity, Heavy Duty (Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.

9. Conveyor: Ft 18 X Width 18 Inch X Thickness 8mm, Dunlop or Standard Company Belt.

10. Color Mixer (Drum Type): Color Mixer for Top Layer of Paver Blocks.

11. Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

12. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

13. Note: Specifications are subject to change for improvement.
