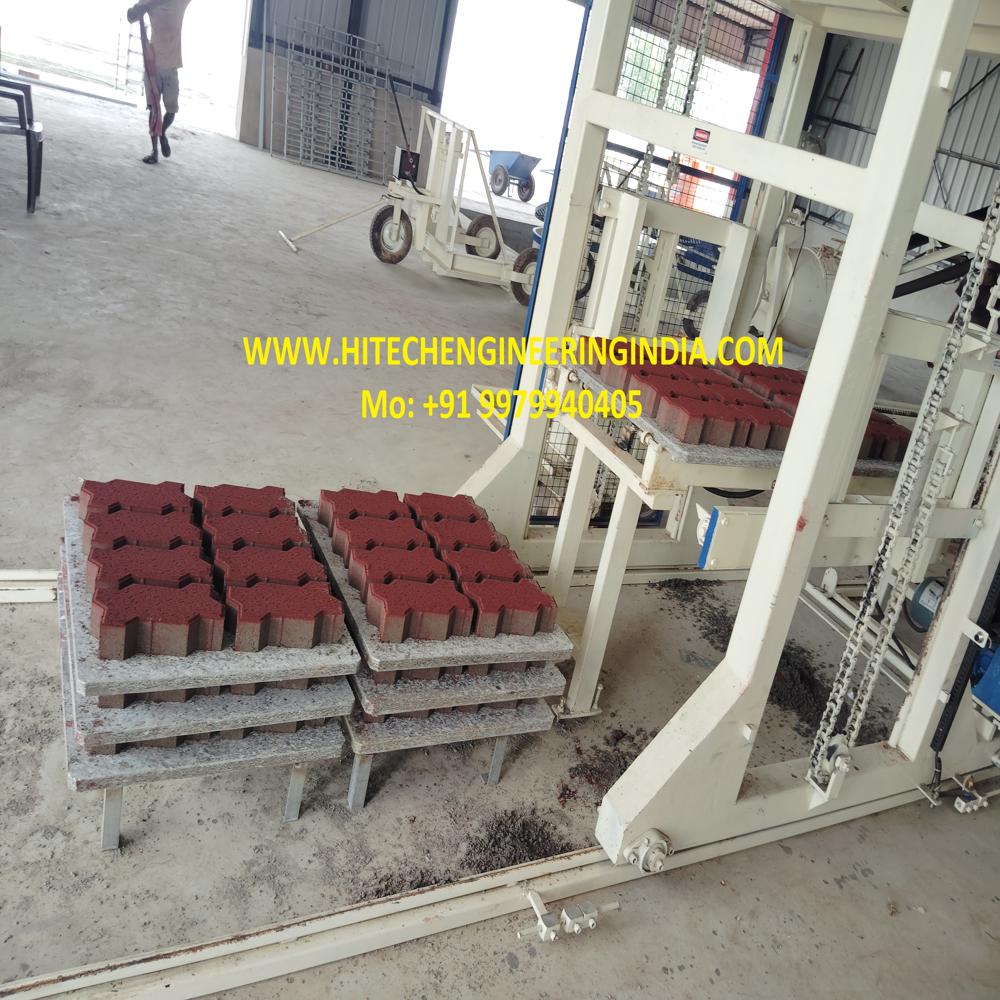

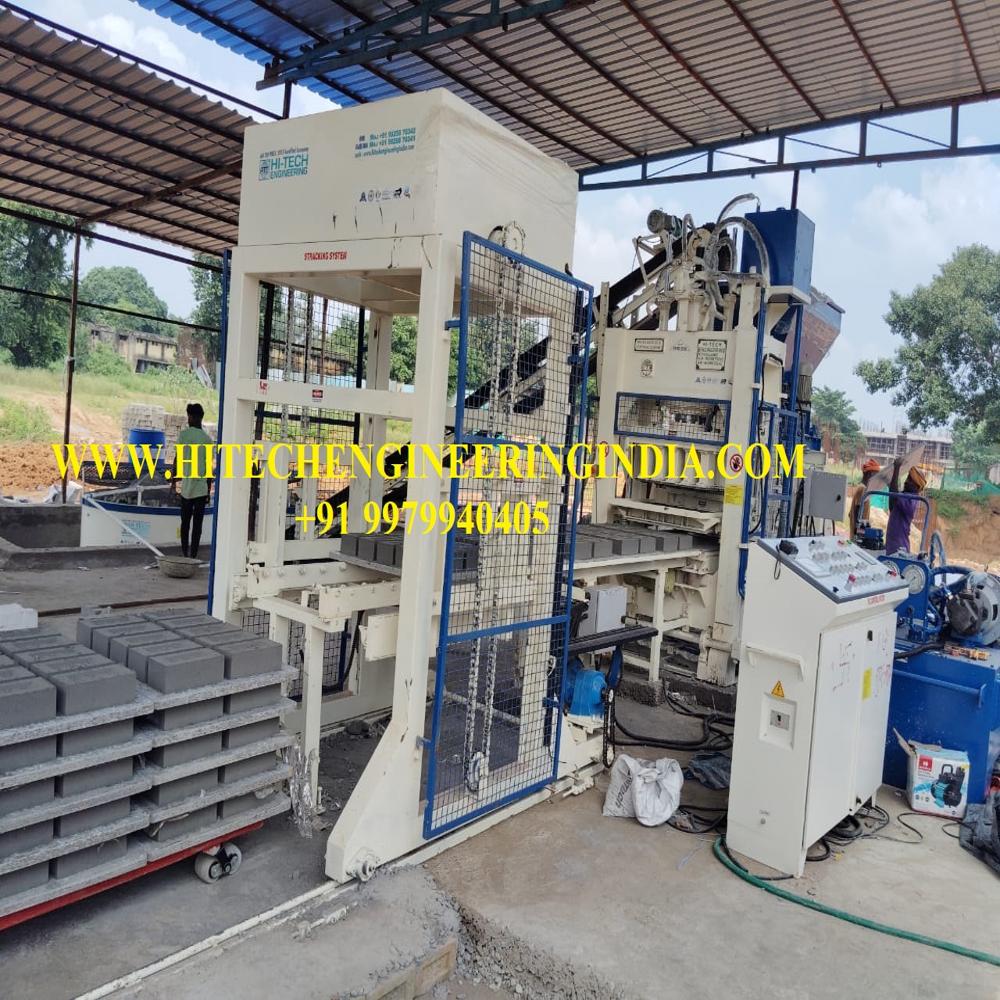

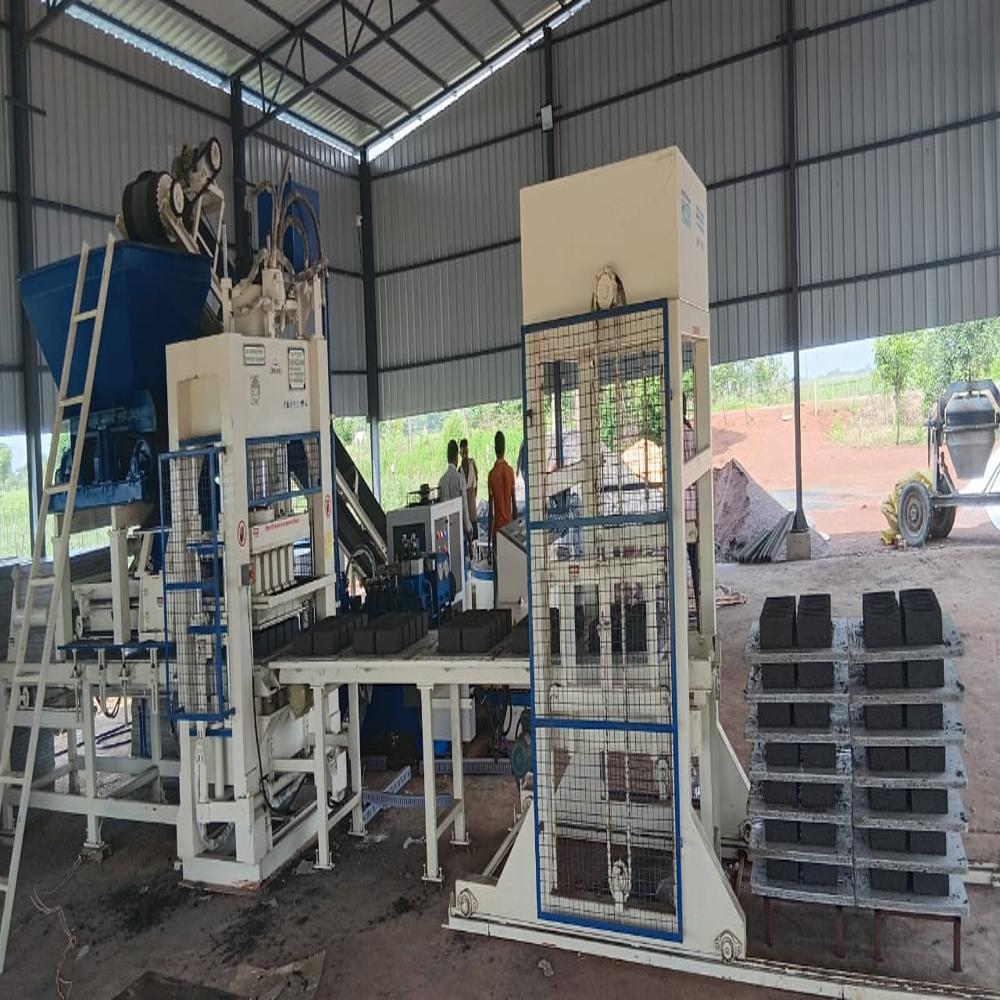

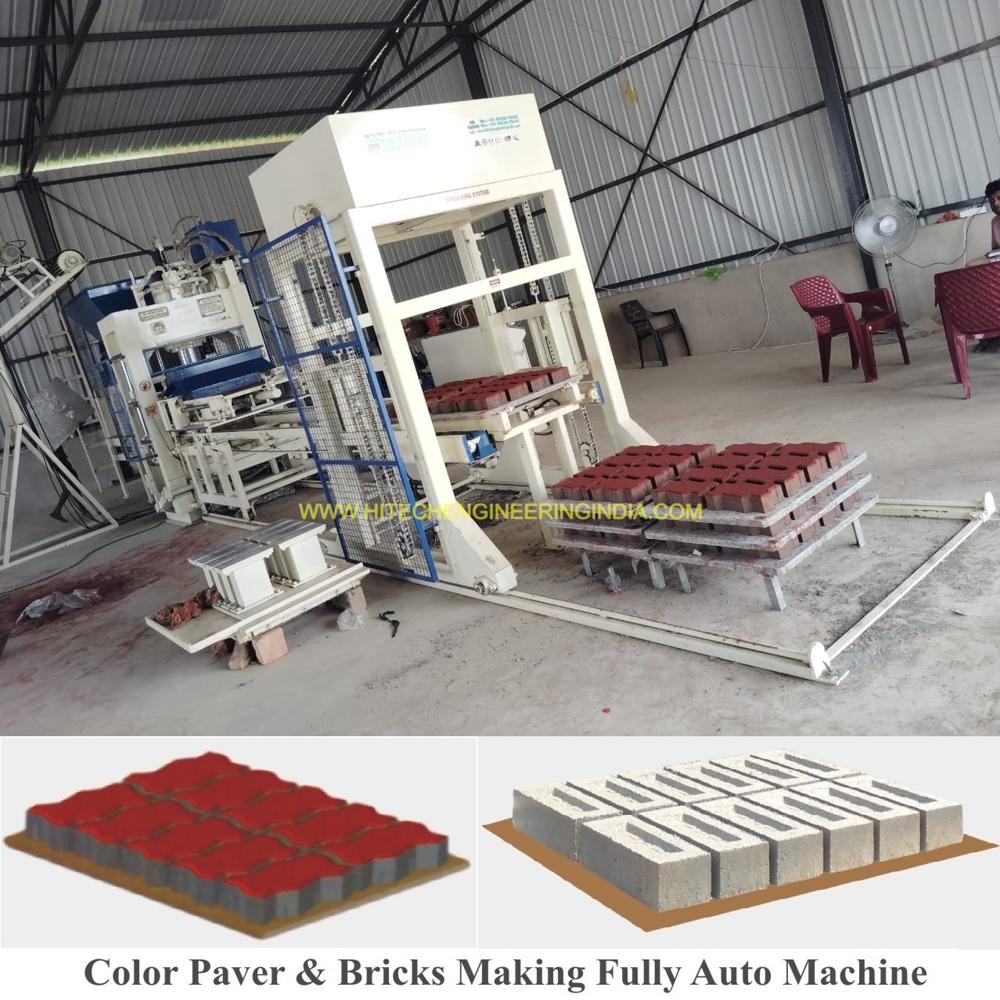

Automatic Paver Block Making Machine

Name: Automatic Paver Block Making Machine
Brand: HI TECH ENGINEERING
Price: 2973900.0 INR
Availability: InStock

Price 2973900.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Paver Block Making Machine Specification

Product Type
Color Paver, Fly Ash Bricks

Material
Concrete

Capacity
2300 Pcs/hr

Weight (kg)
10 Metric Ton

Type
Other

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Method
Hydraulic Pressure

Vibration Type
Mold Vibration

Vibration Frequency
50 Hertz (HZ)

Maximum Pressure
3000 PSI

Machine Power
50 Horsepower (HP)

Voltage
440 Watt (w)

Dimension (L*W*H)
225x112.5x80 Millimeter (mm)

Pallet Size
28"x 24" x 24mm

Minimum Height
4 Inch (in)

Maximum Height
8 Foot (ft)

Number of Bricks
10

Feature
Low Weight, Fire Resistant, High Durability

Color
yes

Warranty
1 Year

Automatic Paver Block Making Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
2 Units Per Month

Delivery Time
2

Sample Available
No

Packaging Details
Loose

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India

Certifications
AN ISO 9001:2015 CERTIFIED COMPANY

About Automatic Paver Block Making Machine

Model No. HTC-1025

1. High Press Tonnage: 150 MT + 4 HP Mould Vibro Pressure, German Technology.

2. Total Power Require: 50HP, 37.5 KW, 3 Phases.

3. Oil Tank Capacity: 550 Liter, Grade 68 No. Hydraulic Oil,

4. Production Capacity per Shift 8 Hour: Color Paver 9000 to 9600, Bricks 18900 to 19200.

5. Bricks per Stock: 8 Paver Block or depend on design, 10 Bricks 230 X 110 X 75mm or as per requirement.

6. System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

7. Auto Color Feeding: Auto Double Feeder Attachment for Top Layer / Color Paver.

8. Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.

9. Color Mixer (Drum Type): Color Mixing for Top Layer of Paver Blocks.

10. Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.

11. Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

12. Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

13. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

14. Note: Specifications are subject to change for improvement.

Efficient High-Capacity Output

With the ability to produce up to 2,300 blocks per hour, this automatic paver block machine is engineered for large-scale production. Its advanced hydraulic pressure and mold vibration mechanisms ensure a uniform, high-quality product. Suiting various construction needs, it accommodates block heights from 4 inches to 8 feet and delivers consistent results for every batch.

Advanced PLC-Controlled Automation

Featuring a computerized PLC control system, this machine streamlines block manufacturing with minimal manual intervention. Its intuitive controls allow for easy customization of block dimensions and guarantee precise operation. The automatic setup cuts down production time and operator fatigue, making it an optimal choice for efficiency-focused manufacturing environments.

Durable and Safe Construction

Built to withstand intensive industrial use, this machine features a sturdy concrete body with a 10 metric ton weight capacity. It incorporates fire-resistant and low-weight components, ensuring both safety and portability. The machine also offers excellent durability, supported by a 1-year manufacturer warranty and easy maintenance protocols.

FAQ's of Automatic Paver Block Making Machine:

Q: How does the automatic paver block making machine operate?

A: This paver block machine operates using a combination of PLC-controlled automation, mold vibration technology, and hydraulic pressure, ensuring high-speed and uniform block production with minimal manual effort.

Q: What is the production capacity and block size supported by this machine?

A: The machine can produce up to 2,300 paver blocks per hour, each with standard dimensions of 225x112.5x80 mm, and supports adjustable block heights from 4 inches to 8 feet as per user requirements.

Q: Where is this automatic paver block making machine manufactured and supplied?

A: This machine is manufactured and supplied in India by a reputable manufacturer, ensuring support, spare parts, and warranty services are readily available regionally.

Q: What materials are compatible with this paver block making machine?

A: The machine is specifically designed for concrete material, offering robust and weather-resistant paver blocks suitable for various construction projects.

Q: What are the benefits of using a PLC-controlled and computerized machine?

A: PLC control enables precise adjustments, consistent quality, and automated error handling, ultimately improving operational efficiency and reducing production downtime.

Q: How does the vibration and hydraulic pressure method enhance block quality?

A: The combination of mold vibration at 50 Hz and hydraulic pressure up to 3000 PSI ensures dense, uniformly shaped blocks with high strength and durability.
