High Pressure Paver Block Machine

Name: High Pressure Paver Block Machine
Brand: HI TECH ENGINEERING
Price: 2671800.0 INR
Availability: InStock

Price 2671800.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

High Pressure Paver Block Machine Specification

Product Type
Color Paver, Fly Ash Bricks

Material
Concrete

Capacity
32 Pcs/min

Type
Other

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Method
Hydraulic Pressure

Vibration Type
Mold Vibration

Vibration Frequency
35 Hertz (HZ)

Maximum Pressure
3000 PSI

Machine Power
39 Horsepower (HP)

Voltage
440 Watt (w)

Dimension (L*W*H)
225x112.5x80 Millimeter (mm)

Pallet Size
24 Inch x 24 Inch x 18 mm

Minimum Height
4 Inch (in)

Maximum Height
8 Foot (ft)

Number of Bricks
8

Feature
Low Weight, Fire Resistant, High Durability

Color
yes

Warranty
12 Months

High Pressure Paver Block Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
2 Units, Unit Per Month

Delivery Time
60 Days

Sample Available
No

Packaging Details
Loose

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India

Certifications
AN ISO 9001:2015 CERTIFIED COMPANY

About High Pressure Paver Block Machine

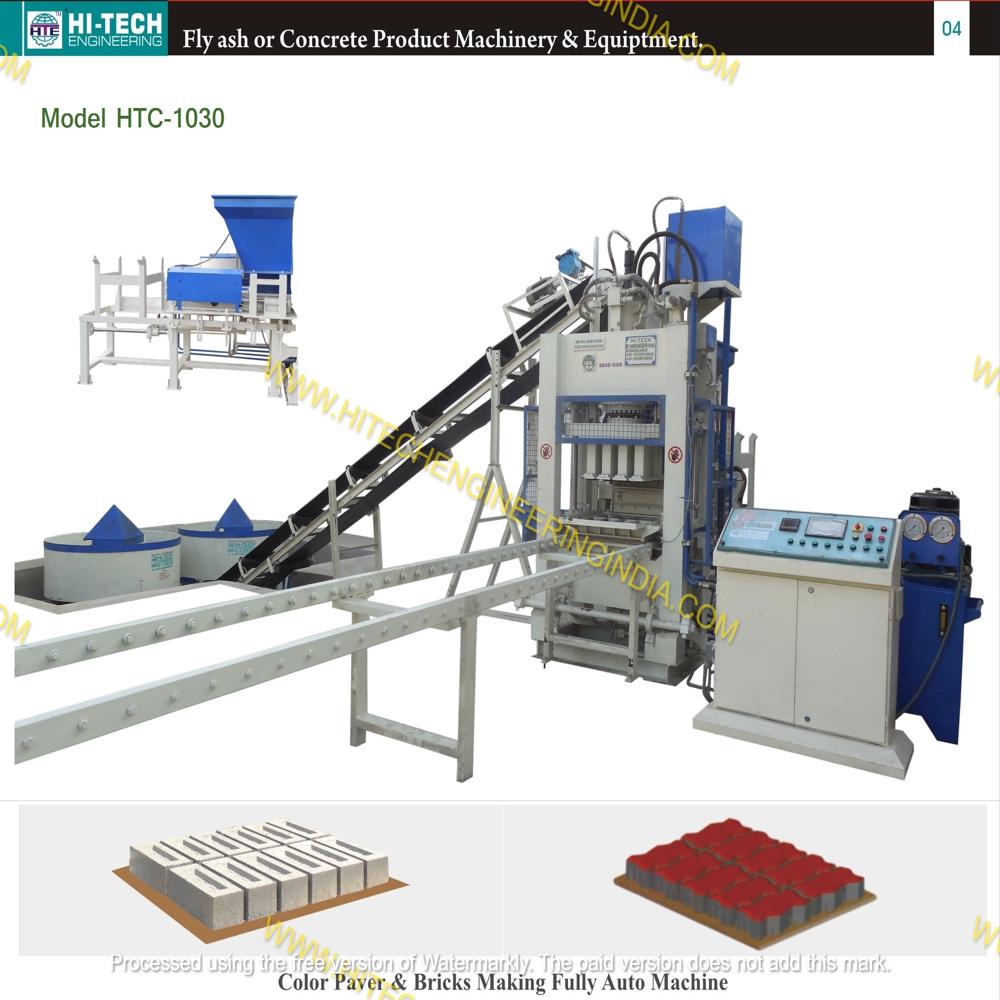

Model No. HTC-1030

1. High Press Tonnage: 125 MT + 4 HP Mould Vibro Pressure, German Technology.

2. Total Power Require: 39 HP, 29.25 KW, 3 Phases.

3. Oil Tank Capacity: 550 Liter, Grade 68 No. Hydraulic Oil,

4. Production Capacity per Shift 8 Hour: Color Paver 7000 to 7200, Bricks 15000 to 15500.

5. Bricks per Stock: 6 Paver Block or depend on design, 8 Bricks 230 X 110 X 75mm or as per requirement.

6. System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

7. Auto Color Feeding: For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System.

8. Pan Mixer: 2 Nos. (5 Ft. 400 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.

9. Color Mixer (Drum Type): Color Mixing for Top Layer of Paver Blocks.

10. Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.

11. Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

12. Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

13. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

14. Note: Specifications are subject to change for improvement.

Advanced Hydraulic System

This machine employs a hydraulic pressure method combined with mold vibration technology, enabling precise and robust production of brick and paver blocks. The hydraulic system ensures uniform compaction, resulting in highly durable blocks that meet rigorous construction standards while maintaining consistent quality.

Efficient Production Line

With a capacity of up to 32 pieces per minute, this paver block machine significantly boosts productivity. Its fully automated computerized controls and PLC integration streamline operations, allowing for minimal manual intervention. The sizable pallet accommodates diverse block sizes and up to 8 bricks per cycle.

Durable and Low Maintenance

Engineered using high-quality concrete and designed for minimal weight, the machine withstands demanding production environments. It offers a fire-resistant and weather-proof build, ensuring long-term performance. Regular maintenance is straightforward due to accessible components and clear operational indicators.

FAQ's of High Pressure Paver Block Machine:

Q: How does the High Pressure Paver Block Machine operate?

A: The machine functions through a combination of hydraulic pressing and mold vibration to form blocks. It is equipped with a computerized PLC control system that automates the entire process, including raw material feeding, molding, and final ejection of the blocks for increased efficiency and precision.

Q: What materials are suitable for use with this machine?

A: This paver block machine is optimized for concrete blends, especially those utilizing fly ash as a primary ingredient. The flexible design allows for different aggregate compositions, ensuring versatility for various construction requirements.

Q: When should regular maintenance be performed?

A: Routine maintenance is recommended after every significant production run or at preset intervals as indicated by the manufacturer. This includes inspecting hydraulic components, cleaning molds, and verifying PLC controls to ensure continuous optimal performance.

Q: Where can this machine be installed?

A: The machine is suited for both large-scale and mid-sized brick manufacturing facilities and can be effectively installed in industrial environments across India and other countries. It requires an appropriate voltage supply (440V) and adequate factory space for operational efficiency.

Q: What is the warranty period for the machine?

A: A warranty period of 12 months from the date of purchase is provided, covering major components and manufacturing defects to ensure peace of mind and reliable support from the supplier.

Q: What are the benefits of using this machine?

A: Key benefits include a rapid production rate, high durability of blocks, automation for reduced labor involvement, and lower weight facilitating easier machine handling. Additionally, the fire-resistant feature adds extra safety to your production site.
