Cement Brick Making Machine

About Cement Brick Making Machine

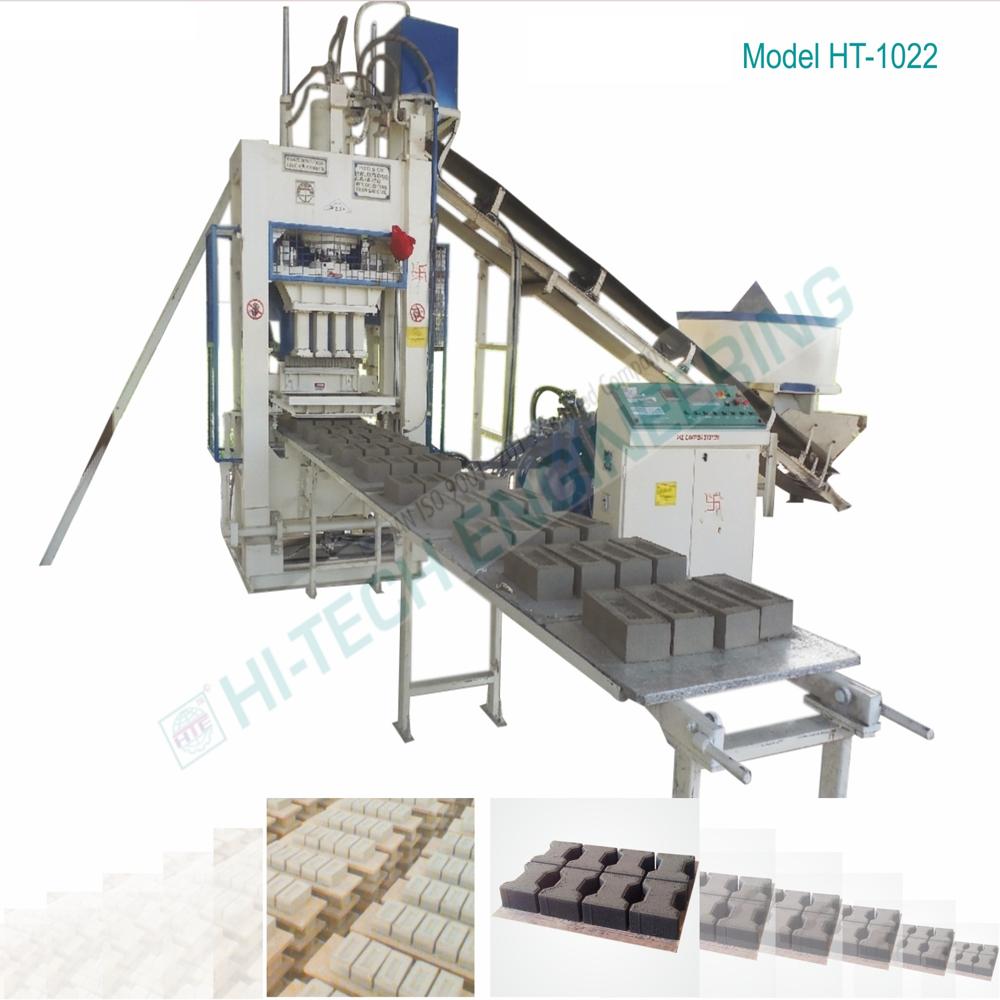

Model No. HT-1022

1.        High Pressure Tonnage: 80 MT + 2 HP Mould Vibro Pressure, German Technology.

2.        Total Power Require: 22 HP, 16.5 KW, 3 Phases.

3.        Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil,

4.        Production per Shift 8 Hour: Bricks 7000 to 7700 / Plain Paver 5000 to 5700.

5.        Bricks per Stock: 4 Bricks, 230 X 110 X 75mm or as per requirement.

6.        System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

7.        Pan Mixer: 5 Ft. 400 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit.

8.        Conveyor: Ft 18 X Width 18 Inch X Thickness 8mm, Dunlop or MRF Belt.

9.        Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

10.     Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

11.     Note: Specifications are subject to change for improvement.
