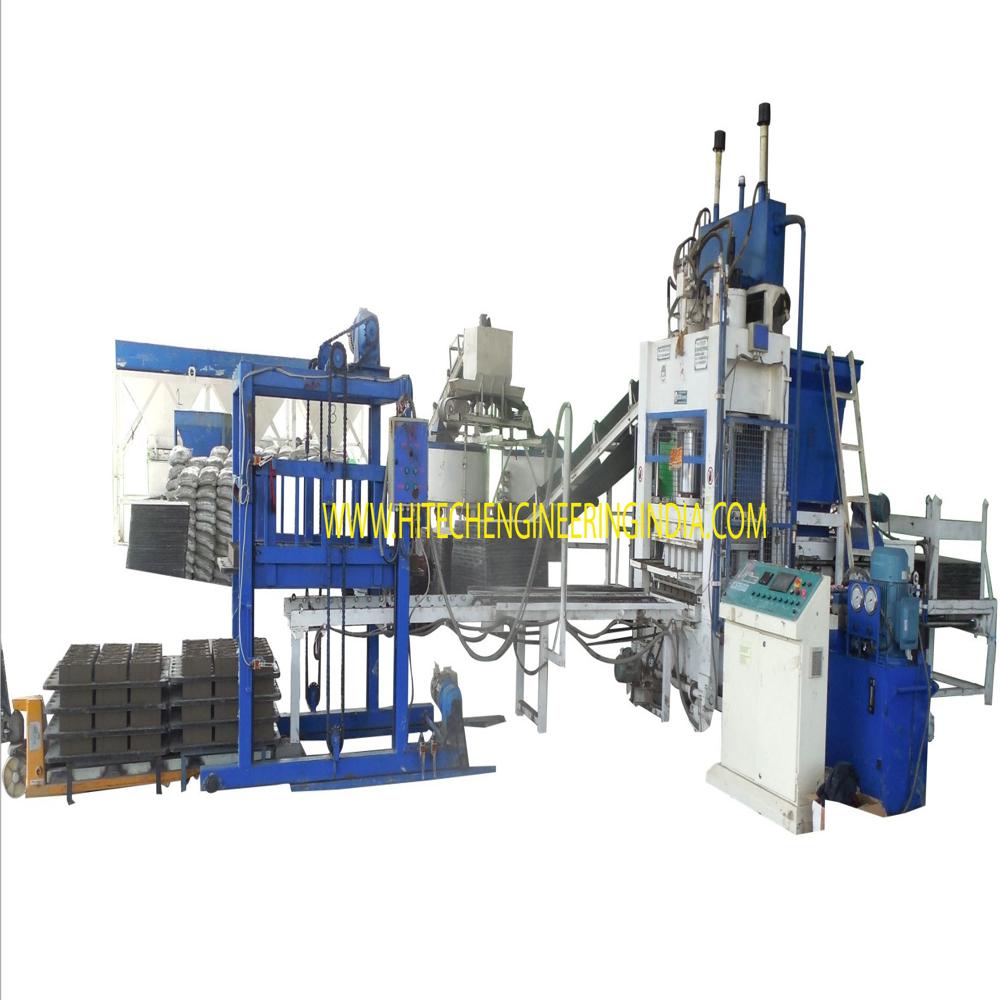

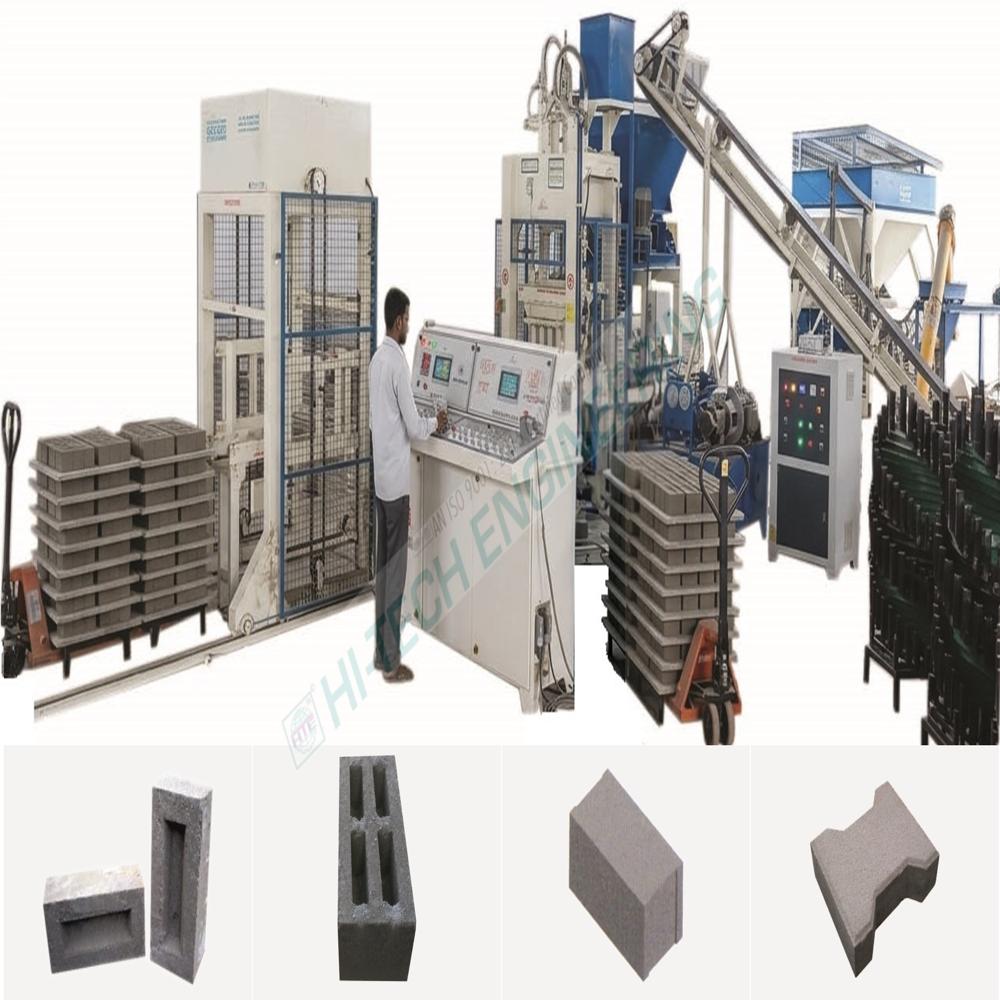

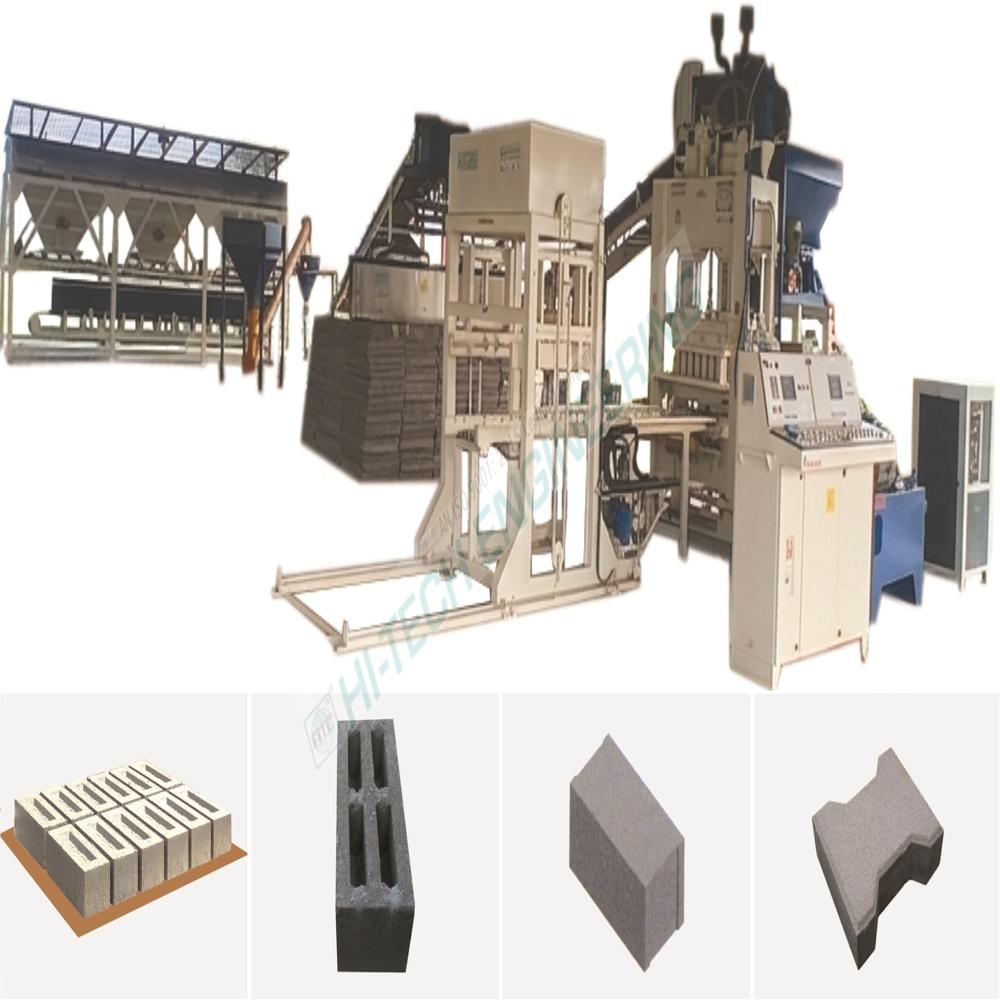

Brick Production Plant

About Brick Production Plant

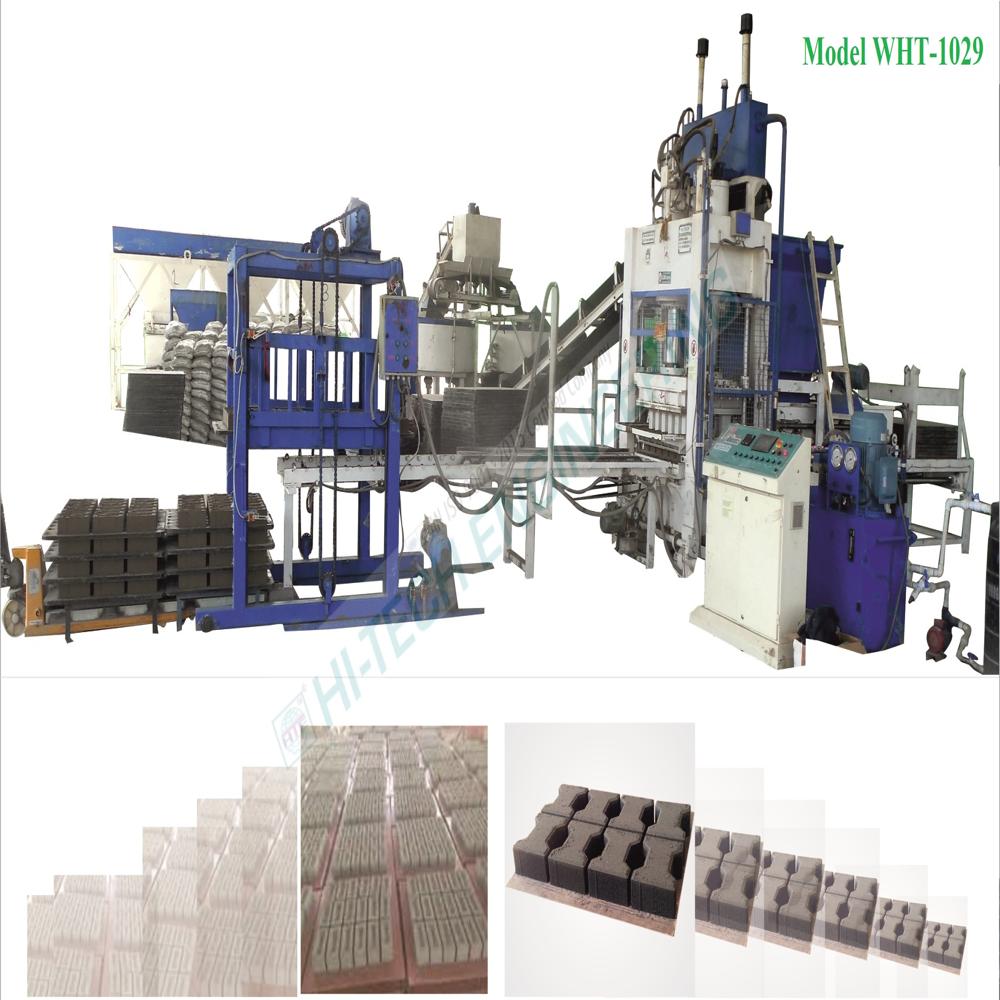

Model No. WHT-1029

1.        High Press Tonnage: 300 MT + 6 HP Mould Vibro Pressure, German Technology.

2.        Total Power Require: 79 HP, 59.25 KW, 3 Phases.

3.        Oil Tank Capacity: 650 Liters, Standard Company Grade 68 No. Hydraulic Oil.

4.        Production Capacity per Shift 8 Hour: Bricks 29000 to 30000.

5.        Bricks per Stock: 18 Bricks, 230 X 110 X 75mm or Size as per requirement.

6.        System: Vibro with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc

7.        Pan Mixer: 2 Nos. (7 Ft 1200 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.

8.        Conveyor: Ft 30 X Width 24 Inch X Thickness 8mm (Dunlop or MRF Belt).

9.        Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

10.     Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System.

11.     Fork Lift (Manual): 1 Nos. For Shifting Green Bricks Pallet from Stacker

12.     Hydraulic Pallet Truck (Manual): 2 Nos. For Shifting Green Bricks Pallet from Shed area to Ground

13.     Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

14.     Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.

Weigh Batcher Plant Double Mixer

3 Bin Inline Auto Weigh Batcher Plant Approx 3.5 Cu.Mt Capacity of Each Bin:

Top Covered Vibrating Screen (Jali) 0.5HP, Capacity Each Bin 3.5 Cu.Mt (Size 7.5 L x 6 W x 4.5 H), Bin Batching Plant Made Of 4mm Thk. Ms Plate with Heavy Pipe & Channel Supports, All Bin Auto Feed Conveyor With 1HP 3Nos Motor, 650mm Wide Conveyor Belt For Receiving Material And Weighment, 5HP Motor and Gearbox, Conveyor Belt Supported On Load Cells. Hopper to Retain Material on Conveyor Belt. Vibrator Motor 0.25HP (3 Nos.) For Fly Ash Hopper Bin, Sand Hopper and Concrete Hopper Bin.

Dunlop Or MRF Company Make Rubber Belt Conveyor (Ft 30):

Inclined Conveyor to Transfer Material from Batching Plant to Mixer, Belt Size 600mm Wide X 3 Ply X 8mm Thickness, Frame made up with 100 x 50 mm Heavy Channel, 3HP - 1440 RPM Crompton Motor & Gear Box with Stater in Panel Board

Panel Board:

Panel Board Suitable To Operate All Above System With All Electronics And Wiring. Digital Display Meters For Each Material, Powder Coated Body Made Of MS Steel, All Preventive Items And PLC Where Ever Necessary.

Cement Screw Conveyor, Hopper, Load Cell, Butter Fly Valve, Air Compressor 1Hp.

Cement Screw Conveyor 18Ft, 5HP Motor and Transmission Box with Assembly, Cap. 100 Kg. Per Five Minutes Made Of MS Pipe And MS Blades. Bottom Hopper, Cap. 400 Kg Load With 0.25HP Vibrator, Upper Hopper Load Cell 0.25HP Vibrator.

Reverse Forward Conveyor with Hopper:

Reverse Forward Conveyor to Transfer Material from Batching Conveyor to One, By One Both Mixer. 6 FT/ 600 mm wide Rubber Belt 8mm thk. 3ply. 2HP Motor with Gear Box and Unit Frame Made of Heavy Ms Channel Rollers with Hoper.
