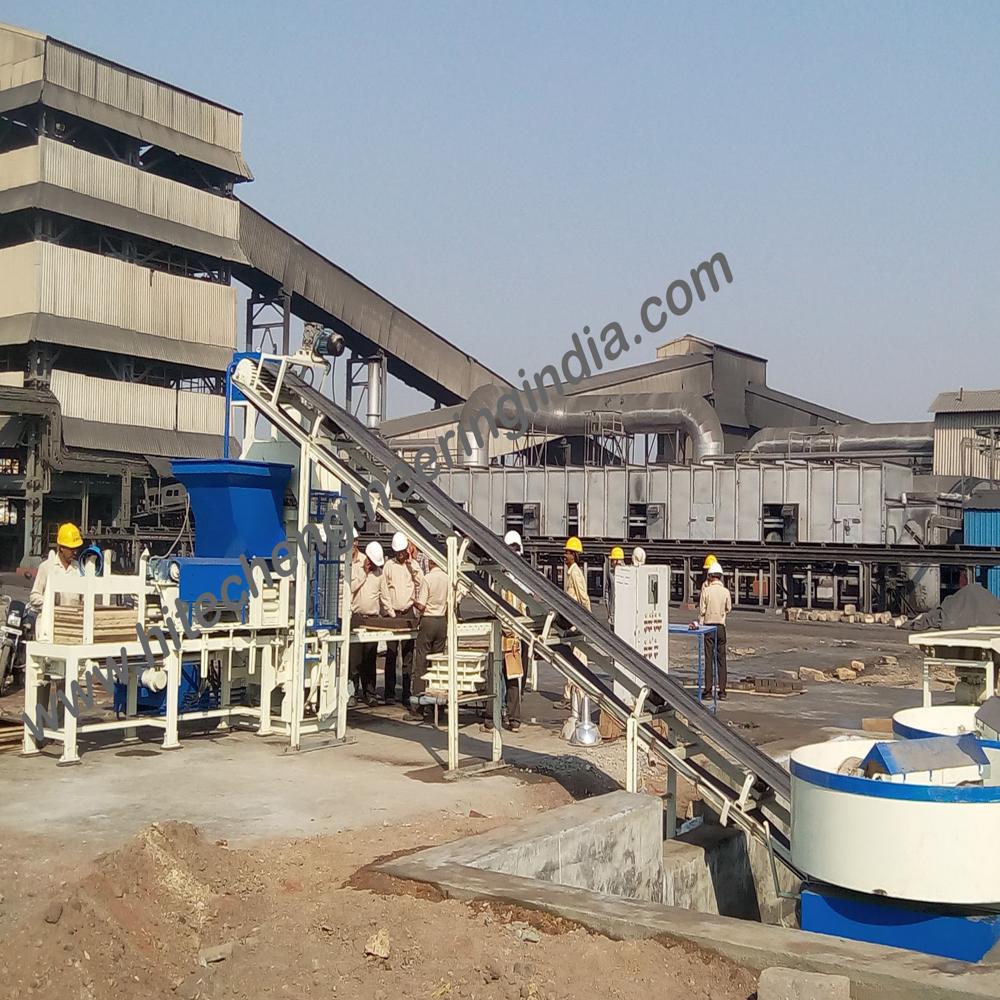

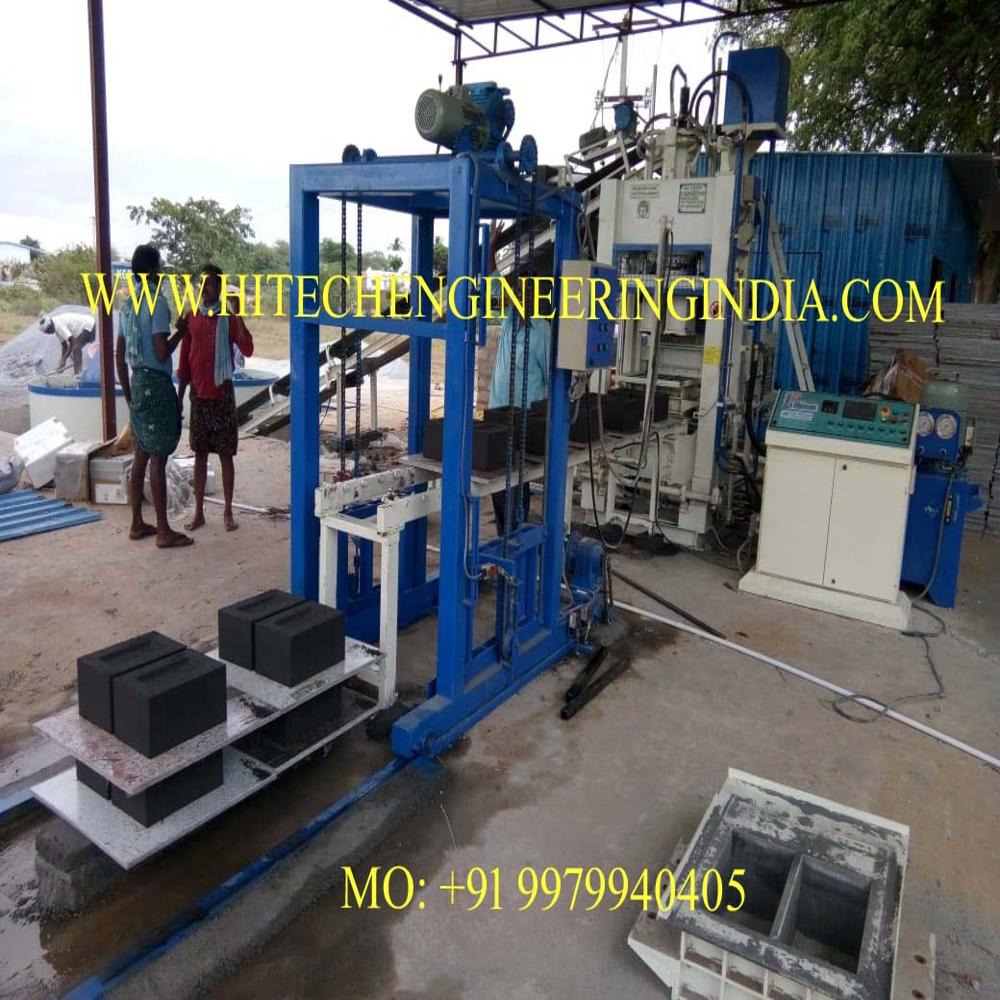

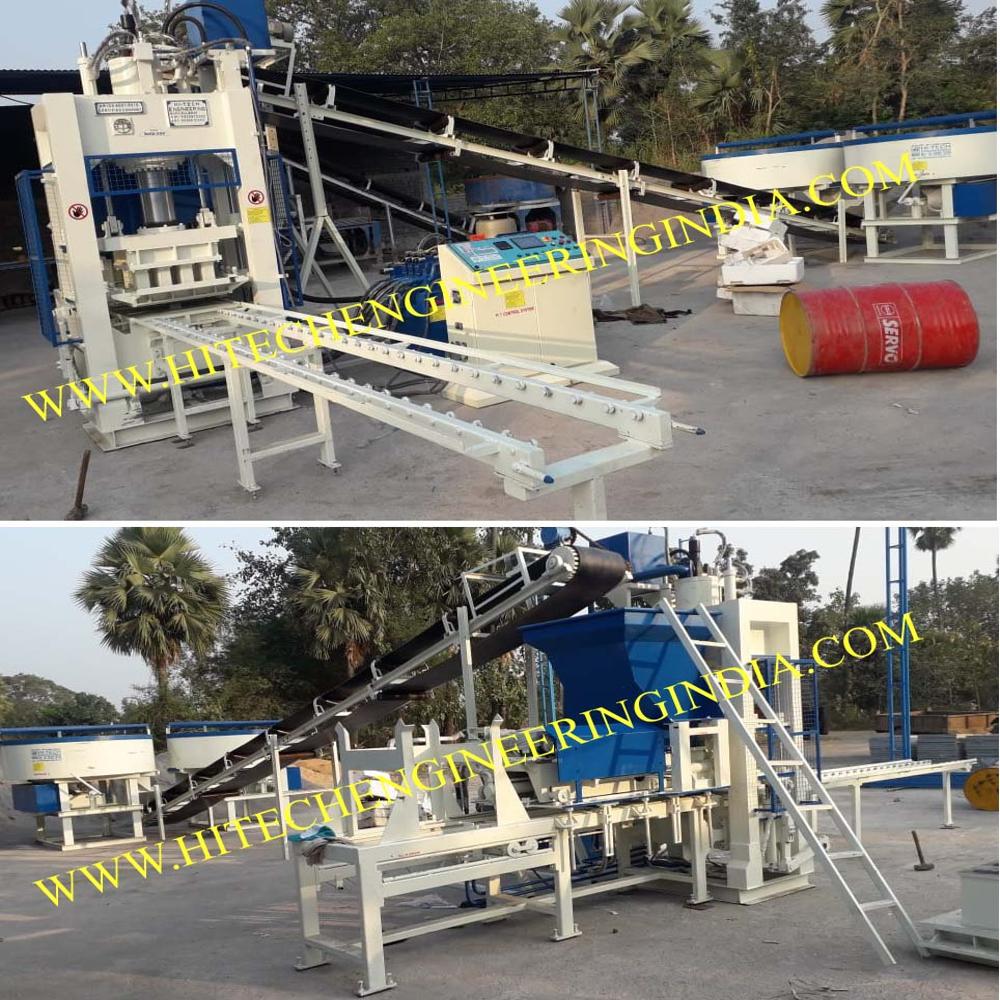

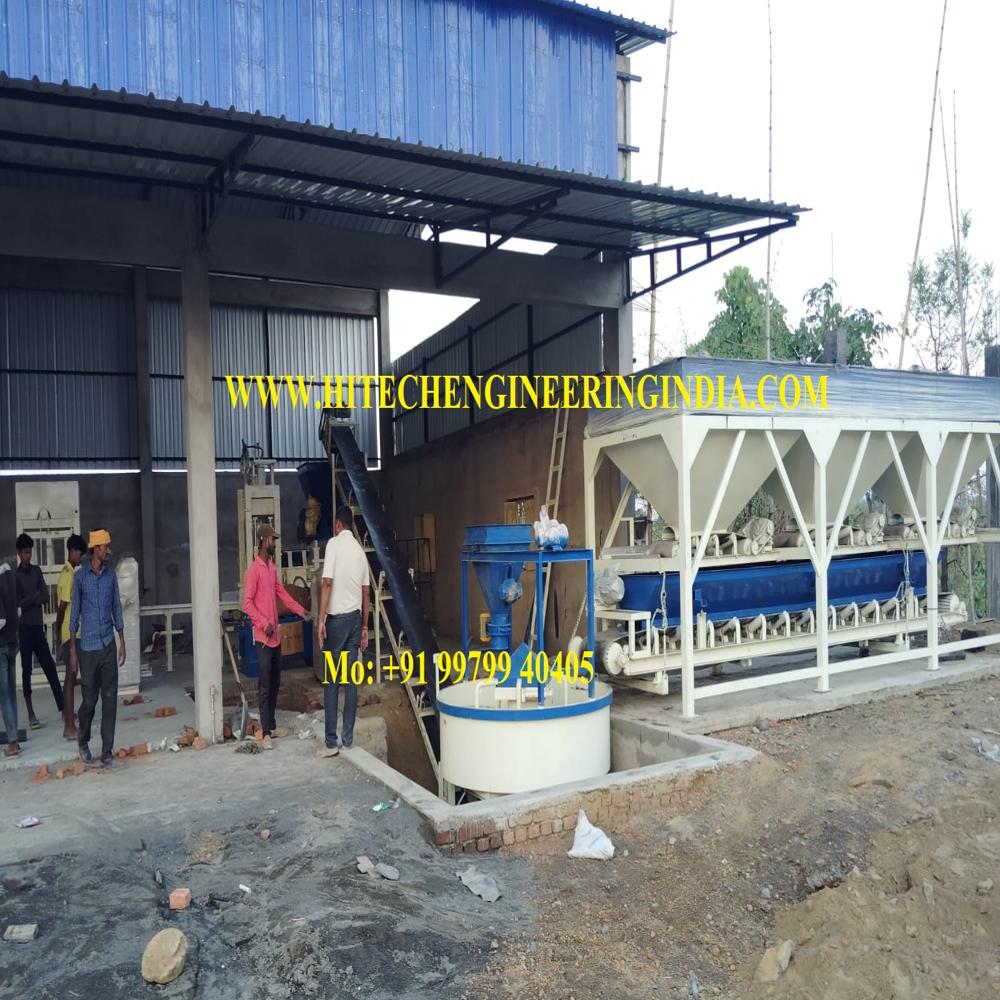

Solid Block Making Machine

About Solid Block Making Machine

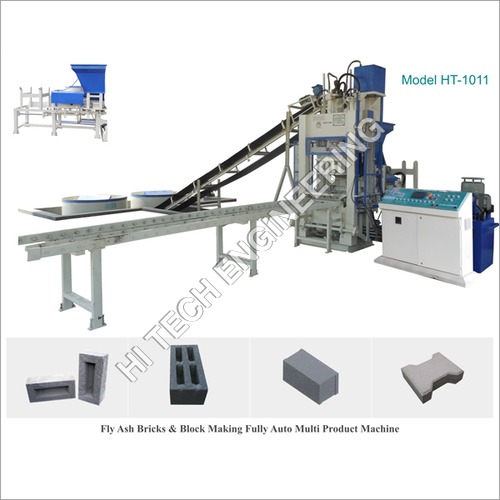

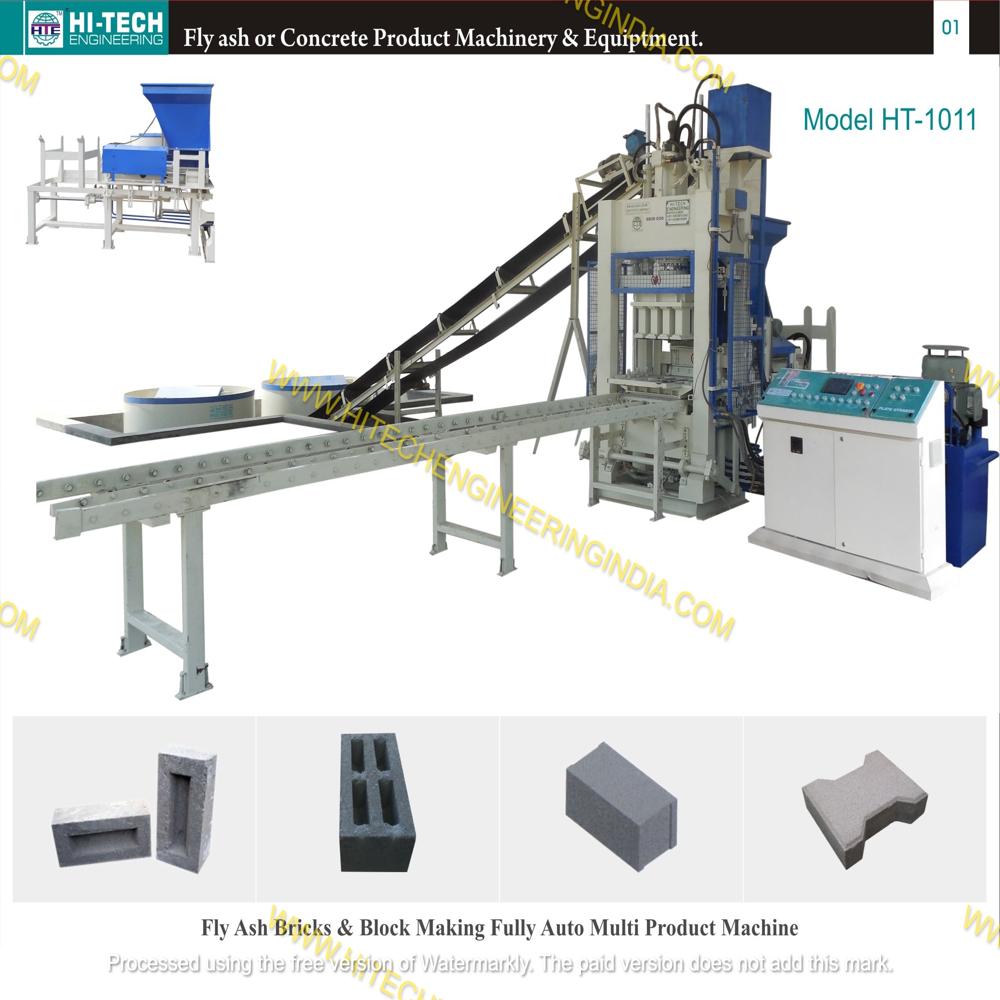

Model No. HT-1011

1.        High Pressure Tonnage: 125 MT + Top Vibro Pressure, German Technology.

2.        Total Power Require: 47 HP, 35.25 KW, 3 Phases.

3.        Oil Tank Capacity: 550 Liter, Grade 68 No. Hydraulic Oil.

4.        Production per Shift 8 Hour: Solid Block 3300 to 3600 & Bricks 15000 to 15500 / Plain Paver 11000 to 11500in Shift.

5.        Bricks per Stock: 8 Bricks, 230 X 110 X 75mm or Size as per requirement.

6.        Solid Block per Stock: 2 or 3 Block, 400 X 200 X 150mm or Size as per requirement.

7.        System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

8.        Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.

9.        Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.

10.     Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

11.     Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

12.     Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

13.     Note: Specifications are subject to change for improvement.
