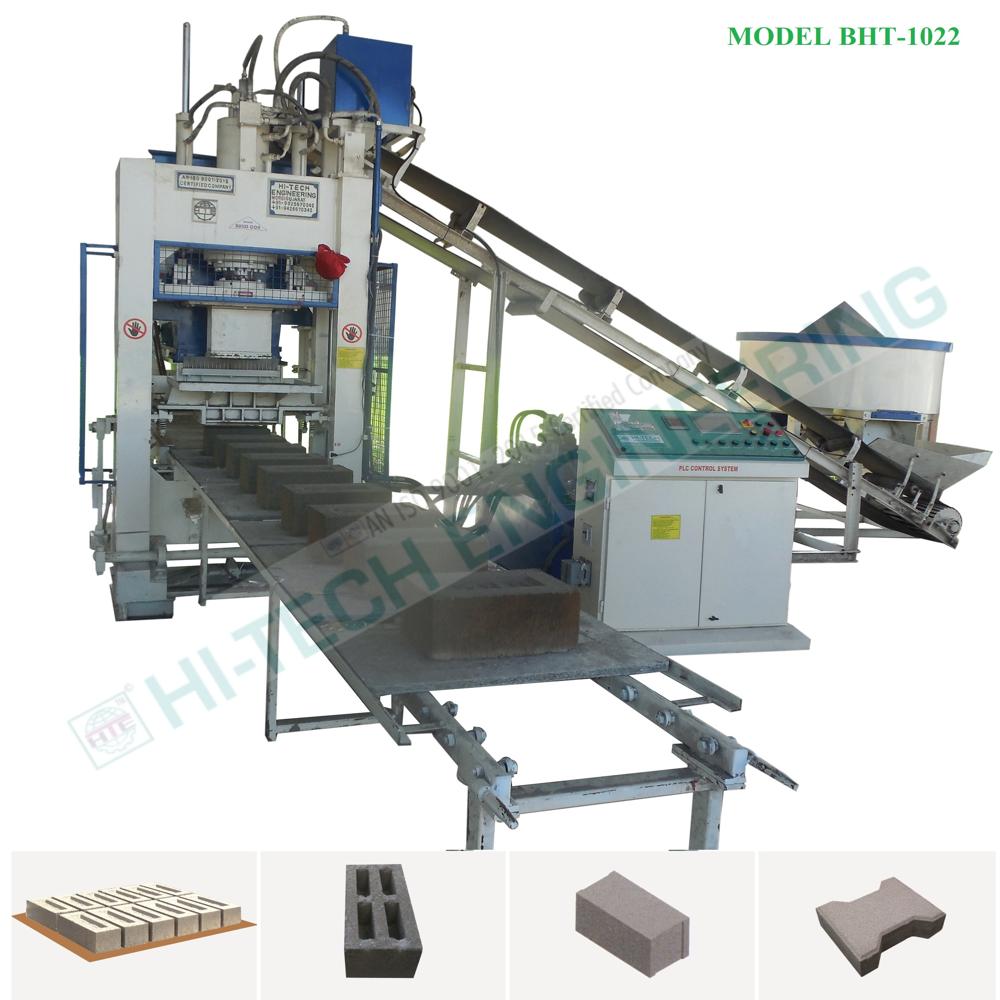

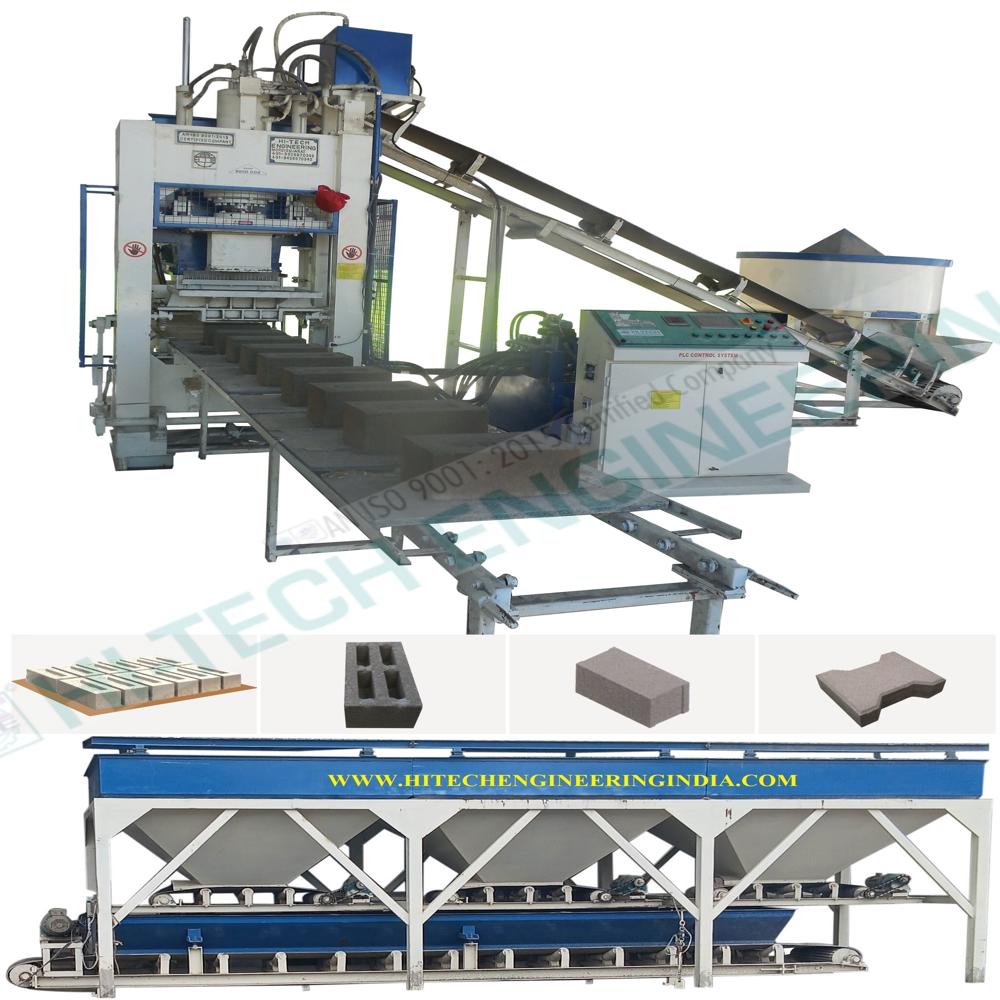

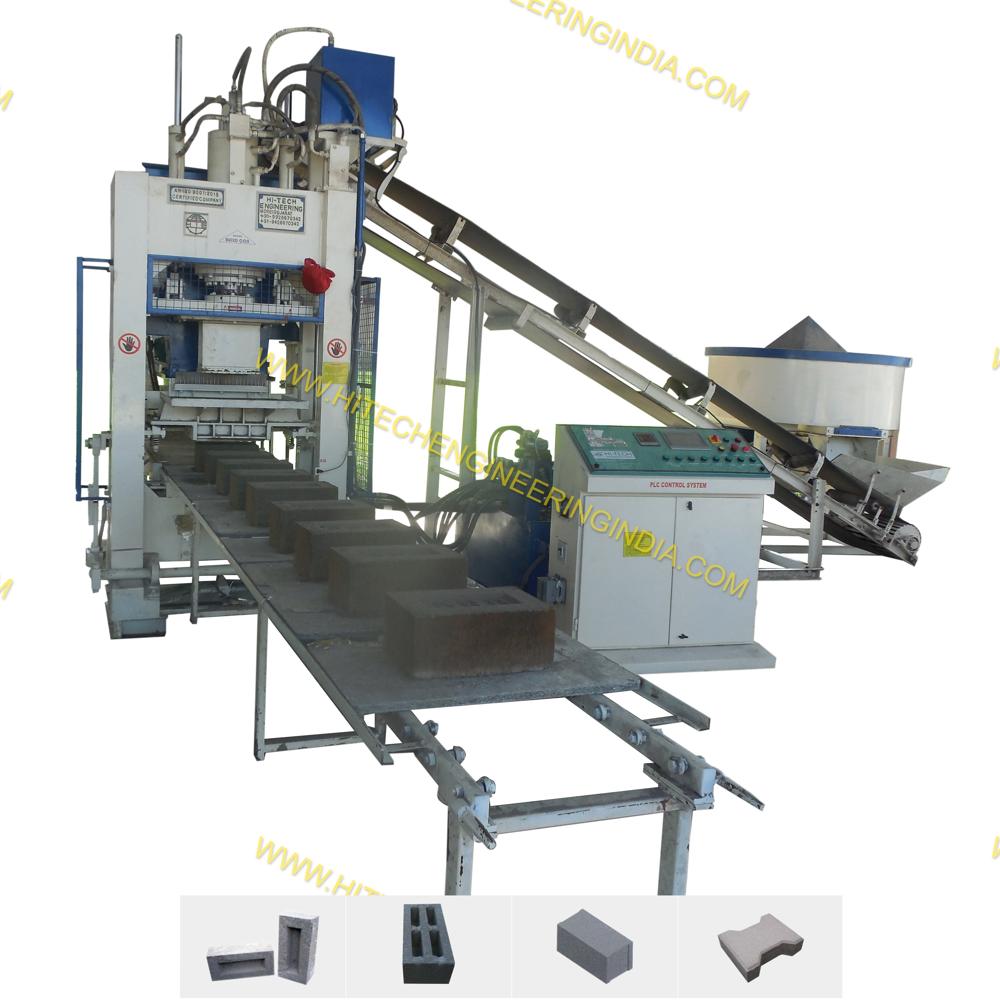

Concrete Block Making Plant

About Concrete Block Making Plant

Model No. BHT-1022

1.        High Pressure Tonnage: 80 MT + 2 HP Mould Vibro Pressure, German Technology.

2.        Total Power Require: 22 HP, 16.5 KW, 3 Phases.

3.        Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil,

4.        Production per Shift 8 Hour: Solid Block 1600 to 1700 & Bricks 6800 to 7200 / Plain Paver 5300 / 5500

5.        Bricks per Stock: 4 Bricks, 230 X 110 X 75mm or as per requirement.

6.        Solid Block per Stock: 1 Block, 400 X 200 X 150mm or Size as per requirement.

7.        System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

8.        Pan Mixer: 5 Ft. 400 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit.

9.        Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

10.     Conveyor: Ft 18 X Width 18 Inch X Thickness 8mm, Dunlop or MRF Belt.

11.     Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

12.     Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

13.     Note: Specifications are subject to change for improvement.
