Automatic Concrete Block Machine

Name: Automatic Concrete Block Machine
Brand: HI TECH ENGINEERING
Price: 3496400.0 INR
Availability: InStock

Price 3496400.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Concrete Block Machine Specification

Product Type
Fly Ash Brick And Solid Block Machine

General Use
Concrete Block

Method
Hydraulic Pressure

Processing
Brick Production Line

Automatic
Yes

Power
440 Watt (w)

Voltage
440 Watt (w)

Capacity
825 Pcs/hr

Weight (kg)
10 Tonne

Warranty
12 Months

Brick Raw Material
Fly Ash

Type
Solid Brick Making Machine

Dimension (L*W*H)
400x200x150 Millimeter (mm)

Color
Grey

Automatic Concrete Block Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
1 Unit Per Month

Delivery Time
60 Days

Sample Available
No

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India

Certifications
AN ISO 9001:2015 CERTIFIED COMPANY

About Automatic Concrete Block Machine

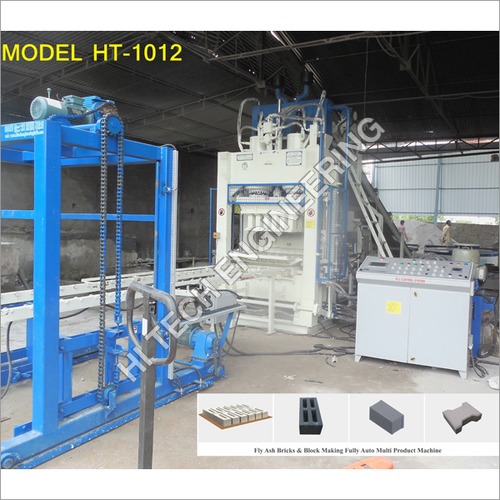

Model No. HT-1012 Dual Force

1. High Pressure Tonnage: 200 MT + 6 HP Mould Vibro Pressure (German Technology).

2. Total Power Require: 60 HP, 45 KW, 3 Phases.

3. Oil Tank Capacity: 600 Liter, Grade 68 No. Hydraulic Oil.

4. Production per Shift 8 Hour: Solid Block 6500 to 6800 & Bricks 22000 to 23000 / Plain Paver 18000 to 19000.

5. Bricks per Stock: 12 Bricks, 230 X 110 X 75mm or Size as per requirement.

6. Solid Block per Stock: 3 or 4 Block, 400 X 200 X 150mm or Size as per requirement.

7. System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

8. Pan Mixer: 2 Nos. (7 Ft. 900 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.

9. Conveyor: Ft 30 X Width 24 Inch X Thickness 8mm, Dunlop/MRF Belt.

10. Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

11. Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

12. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

13. Note: Specifications are subject to change for improvement.

Efficient Block Production

This machine excels at delivering high-speed production with capacities reaching 48 blocks every minute. Its automation and computerized controls significantly reduce manual intervention and error, ensuring consistently shaped bricks with minimal labor costs. Equipped with PLC control and mold vibration, users experience reliable performance with each production cycle.

Rugged Design & Durability

Built to withstand heavy-duty industrial use, this solid brick making machine is constructed from robust materials and weighs between 10 to 11 tonnes. Its impressive maximum pressure of 3000 PSI guarantees dense, solid block structures, while the 12-month warranty provides assurance for sustained productivity over time.

Versatile Material Use

A key advantage of this equipment is its compatibility with fly ash, promoting environmentally friendly block production. The hydraulic pressure method ensures quality compaction, making it perfect for a range of construction applications across India and beyond.

FAQ's of Automatic Concrete Block Machine:

Q: How does the automatic concrete block machine operate?

A: The machine functions automatically with a computerized PLC control system. It utilizes hydraulic pressure (up to 3000 PSI) to compact and mold fly ash into solid bricks, ensuring uniform size and strength with minimal manual oversight.

Q: What materials can be used with this block making machine?

A: The primary raw material for this machine is fly ash, though it may also accommodate concrete mixtures depending on requirements. Fly ash is favored for its eco-friendliness and widespread availability in construction.

Q: What are the main benefits of using this machine for brick production?

A: Key advantages include high production rates (48 pieces per minute), consistent block quality, automation to reduce labor costs, and eco-friendly operation due to fly ash utilization. The robust build also ensures long-lasting performance in demanding environments.

Q: Where is this machine typically supplied and installed?

A: This machine is manufactured and supplied in India, catering to construction businesses, block suppliers, and industrial brick production lines nationwide. Installation and after-sales support are generally covered by the supplier.

Q: When does the warranty for the block machine take effect and how long does it last?

A: The included warranty lasts for 12 months from the installation or purchase date, covering repairs and replacements for manufacturing defects as per manufacturer terms.

Q: What is the process for producing bricks using this machine?

A: Operators load fly ash and other requisite materials onto the machine, select the operational mode via the PLC control, and allow the hydraulic press to mold blocks on the specified pallet size. Mold vibration ensures blocks are consistently compacted and shaped.

Q: How many bricks can this machine produce at one time and what is the pallet size?

A: This model produces 12 solid bricks per batch, using a pallet size of 34 x 24 inches with an 18 mm thickness, accommodating efficient ongoing production flows.
