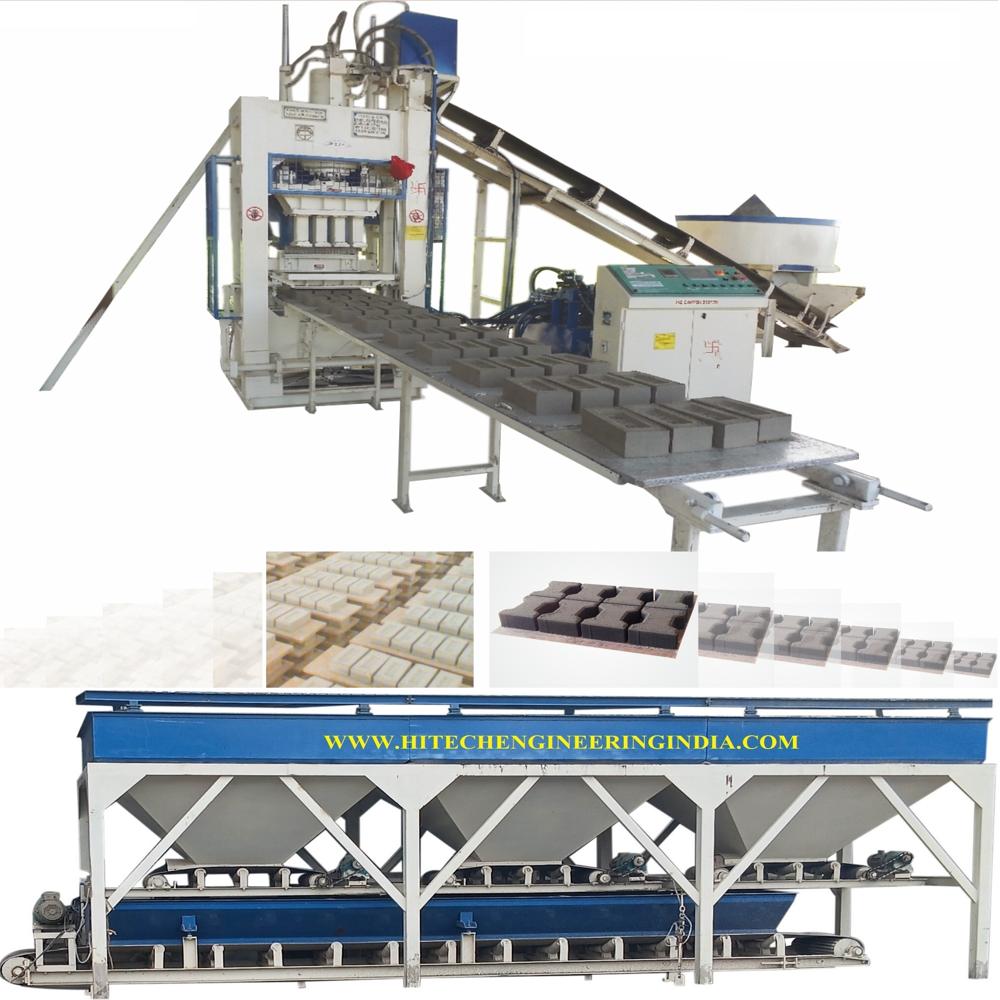

fly ash bricks making plant

Name: fly ash bricks making plant
Brand: HI TECH ENGINEERING
Price: 1481800.0 INR
Availability: InStock

Price 1481800.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

fly ash bricks making plant Specification

Product Type
Fly Ash Bricks

General Use
Fly Ash Bricks Making Machine

Material
Fly Ash

Capacity
1000 Pcs/hr

Weight (kg)
3 Kilograms (kg)

Type
Other

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Method
Hydraulic Pressure

Vibration Type
Mold Vibration

Vibration Frequency
35 Hertz (HZ)

Maximum Pressure
3000 PSI

Machine Power
22 Horsepower (HP)

Voltage
440 Watt (w)

Dimension (L*W*H)
230x110x75 Millimeter (mm)

Pallet Size
24 Inch x 15 Inch x 18 mm

Minimum Height
4 Inch (in)

Maximum Height
8 Foot (ft)

Number of Bricks
4

Feature
Low Weight, Fire Resistant

Color
Grey

Warranty
12 Months

fly ash bricks making plant Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
2 Units Per Month

Delivery Time
60 Days

Sample Available
No

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India

Certifications
AN ISO 9001:2015 CERTIFIED COMPANY

About fly ash bricks making plant

Model No. HT-1022

1. High Pressure Tonnage: 80 MT + 2 HP Mould Vibro Pressure, German Technology.

2. Total Power Require: 22 HP, 16.5 KW, 3 Phases.

3. Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil,

4. Production per Shift 8 Hour: Bricks 7000 to 7700 / Plain Paver 5000 to 5700.

5. Bricks per Stock: 4 Bricks, 230 X 110 X 75mm or as per requirement.

6. System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

7. Pan Mixer: 5 Ft. 400 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit.

8. Conveyor: Ft 18 X Width 18 Inch X Thickness 8mm, Dunlop or MRF Belt.

9. Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

10. Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

11. Note: Specifications are subject to change for improvement.

Advanced Hydraulic Technology

Harnessing a potent hydraulic pressure of 3000 PSI, this fly ash bricks making machine guarantees uniform bricks with outstanding strength and durability. Automatic PLC control ensures precise measurement and consistency in every batch, supporting bulk production demands.

Efficiency and Output

With the ability to deliver up to 1000 bricks per hour and accommodate a pallet size of 24 x 15 inches, this machine maximizes operational productivity. Mold vibration ensures smooth and compact bricks, while the computerized control panel streamlines the process for optimum efficiency.

Reliable and User-Friendly Design

Featuring automated, PLC-controlled functions, this machine minimizes manual intervention, reducing error risks and operator fatigue. The system is suitable for continuous workflow, making it valuable for both small and large-scale manufacturers across India seeking fire-resistant and lightweight building materials.

FAQ's of fly ash bricks making plant:

Q: How does the hydraulic pressure method benefit the fly ash brick-making process?

A: The hydraulic pressure method applies a uniform force up to 3000 PSI, ensuring each brick is thoroughly compacted and structurally sound. This results in high-quality, durable bricks with consistent dimensions and excellent strength.

Q: What is the typical capacity and brick size for this machine?

A: This fully automatic machine can produce up to 1000 bricks per hour. It handles a pallet size of 24 x 15 inches, producing bricks with a minimum height of 4 inches and a maximum of 8 feet, accommodating a wide range of construction needs.

Q: When is the fly ash brick making plant most beneficial for manufacturers?

A: This machine is most effective in environments demanding high brick output, minimal manual labor, and consistent product quality. Its advanced automation makes it ideal for manufacturers aiming to scale production with reliability and efficiency.

Q: Where can this fly ash bricks making machine be installed?

A: The plant is designed primarily for manufacturing facilities and construction sites across India. Its compact dimensions and robust build allow flexibility in installation location, provided there is access to a stable power supply of 440 watts.

Q: What are the main advantages of using this automated fly ash brick making machine?

A: Key benefits include increased production efficiency, uniform mold vibration for improved brick quality, reduced labor costs, PLC-controlled automated operation, and bricks that are fire resistant and lightweight.

Q: How does the PLC control system enhance operational efficiency?

A: The integrated PLC (Programmable Logic Controller) system precisely manages each phase of production, minimizing human error, streamlining workflow, and allowing easy parameter adjustments for different brick sizes or raw material mixtures.

Q: What warranty and support does the manufacturer provide?

A: The machine comes with a 12-month warranty covering manufacturing defects and essential support services, ensuring long-term reliability and peace of mind for users.
