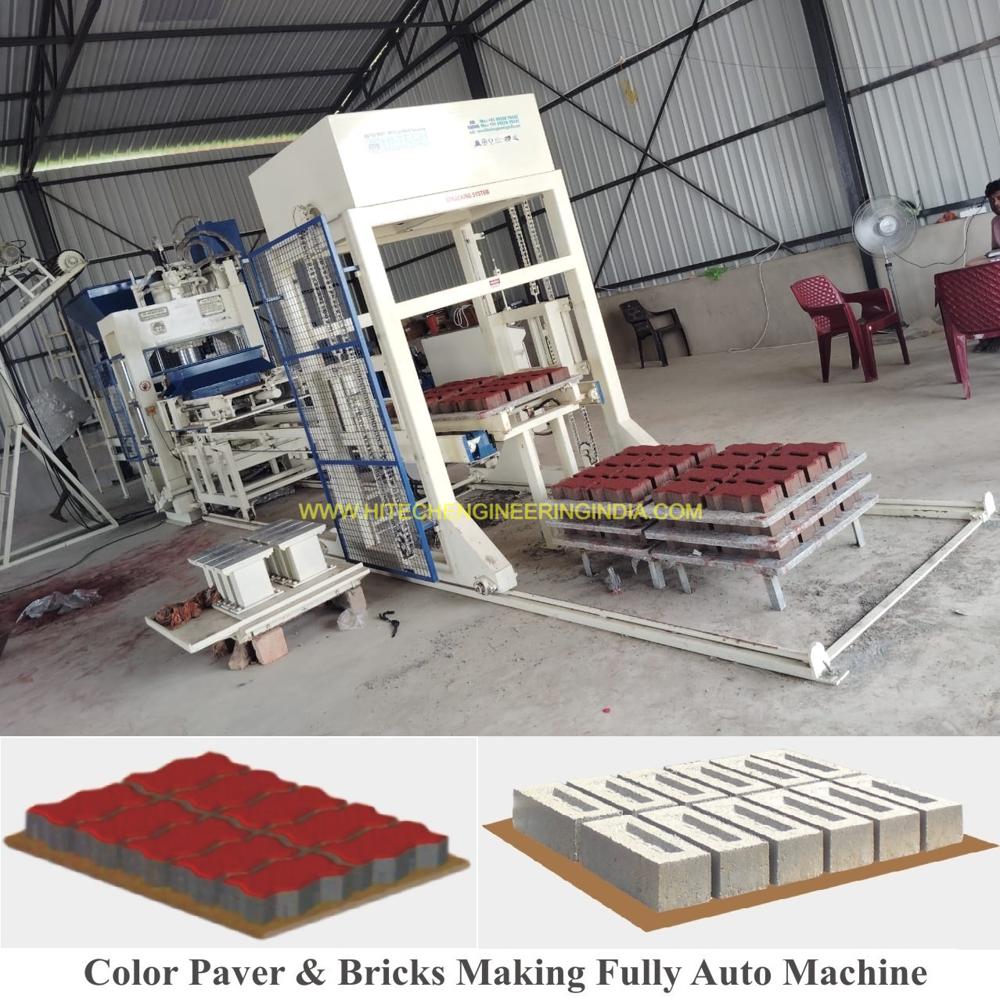

HTC-1025 Color Paver and Brick Making Machine

About HTC-1025 Color Paver and Brick Making Machine

Model No. HTC-1025

1.        High Press Tonnage: 150 MT + 4 HP Mould Vibro Pressure, German Technology.

2.        Total Power Require: 50HP, 37.5 KW, 3 Phases.

3.        Oil Tank Capacity: 550 Liter, Grade 68 No. Hydraulic Oil,

4.        Production Capacity per Shift 8 Hour: Color Paver 9000 to 9600, Bricks 18900 to 19200.

5.        Bricks per Stock: 8 Paver Block or depend on design, 10 Bricks 230 X 110 X 75mm or as per requirement.

6.        System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

7.        Auto Color Feeding: Auto Double Feeder Attachment for Top Layer / Color Paver.

8.        Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.

9.        Color Mixer (Drum Type): Color Mixing for Top Layer of Paver Blocks.

10.     Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.

11.     Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.

12.     Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

13.     Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

14.     Note: Specifications are subject to change for improvement.
