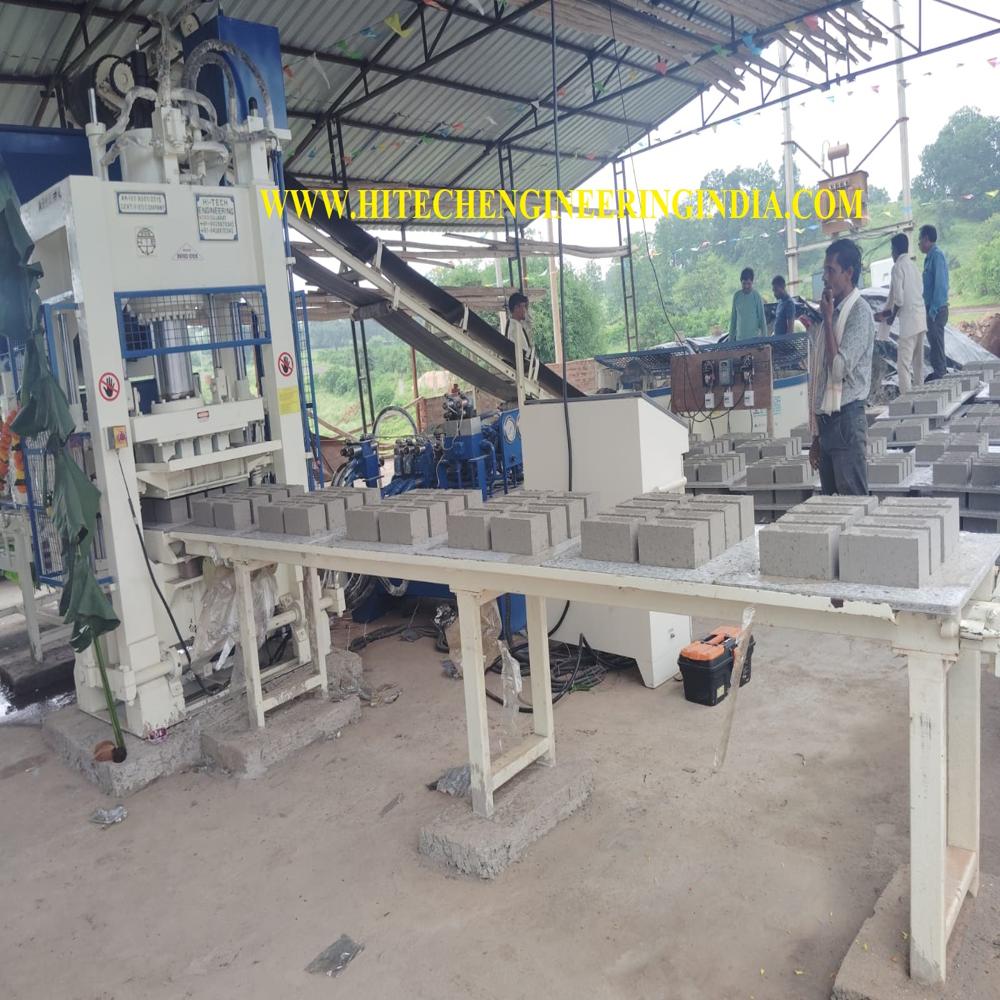

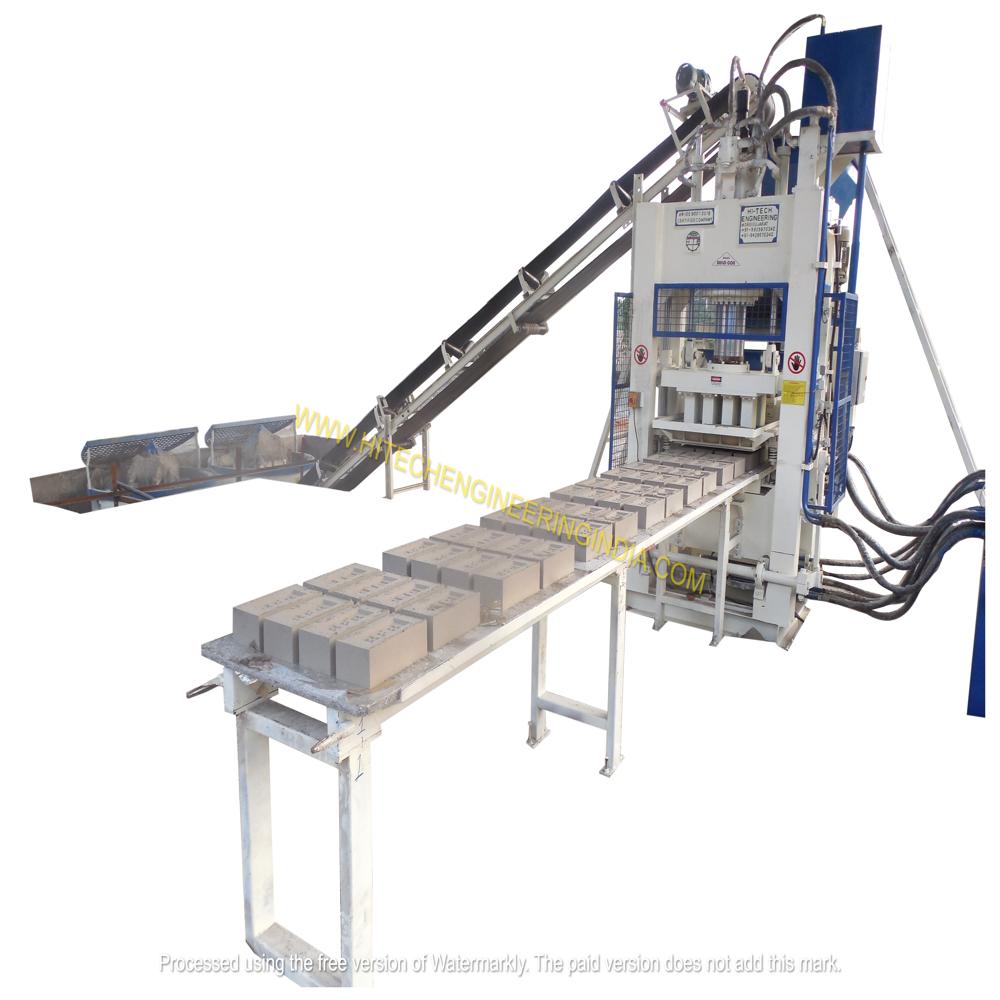

Automatic fly ash brick making machine

About Automatic fly ash brick making machine

Model No. HT-1030

1.        High Pressure Tonnage: 125 MT + 4 HP Mould Vibro Pressure, German Technology.

2.        Total Power Require: 37HP, 27.75 KW, 3 Phases.

3.        Oil Tank Capacity: 500 Liters, Grade 68 No. Hydraulic Oil

4.        Production Capacity per Shift 8 Hour: Bricks 15000 to 16000.

5.        Bricks per Stock: 8 Bricks, 230 X 110 X 75mm or Size as per requirement.

6.        System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...

7.        Pan Mixer: 2 Nos. (5 Ft. 400 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.

8.        Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.

9.        Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).

10.     Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

11.     Note: Specifications are subject to change for improvement.
