Detail

Specification

High Press. Tonnage

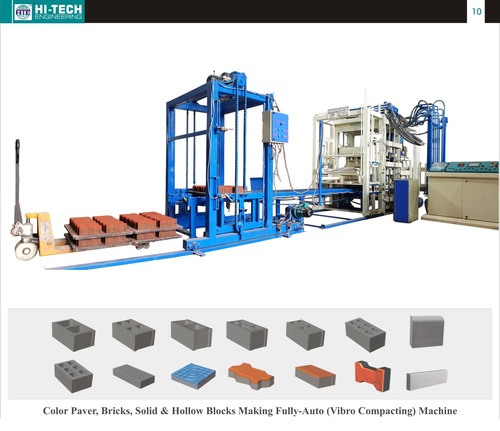

125 MT+ Top Vibro Pressure (German Technology)

Total Power Requ.

34 HP

 3 Phase

Oil Tank Capacity

400 Ltr./ Standard Company

Grade 68 No. . Hydraulic Oil

Produ Capa. / Shift (100% 8 Hour)

Color Paver 7000 to 7500

Bricks 15000 to 16000

Paver Block / Stock

6 Paver Block or depend on design

Design as per requirement

Bricks / Stock

8 Bricks

230 X 110 X 75mm Or as per requirement

System

Vibro with pressure, Oil Cooling, Pallet Auto Cut,

Varam System, Magnetic System, Special Oil Filter, etc

Auto Color Feeding

Auto Double Feeder Attachment for Top Layer / Color Paver

Pan Mixer

2 Nos. / 5 Ft. 400 Kg Capacity.                    Heavy Duty (Roller & Blade )

Powerful Worm Reduction Gear Box Transmission Unit

Conveyor

Ft 30 X Width 18 Inch X Thickness 8mm

Dunlop/MRF Belt

Auto Pallet Stacker (Gear Type)

For Shifting & Arranging Green Bricks Pallet From Press to pallet Truck Or Stacker System.  (If Require)

Color Mixer (Drum Type)

Color Mixer for Top Layer of Paver Blocks.

Auto PLC

Fully Auto PLC operating all system & Warranted safety system with HMI Display

Note

Specifications are subject to change for improvement

Engineering drawing for civil work and shed for the machine installation.
